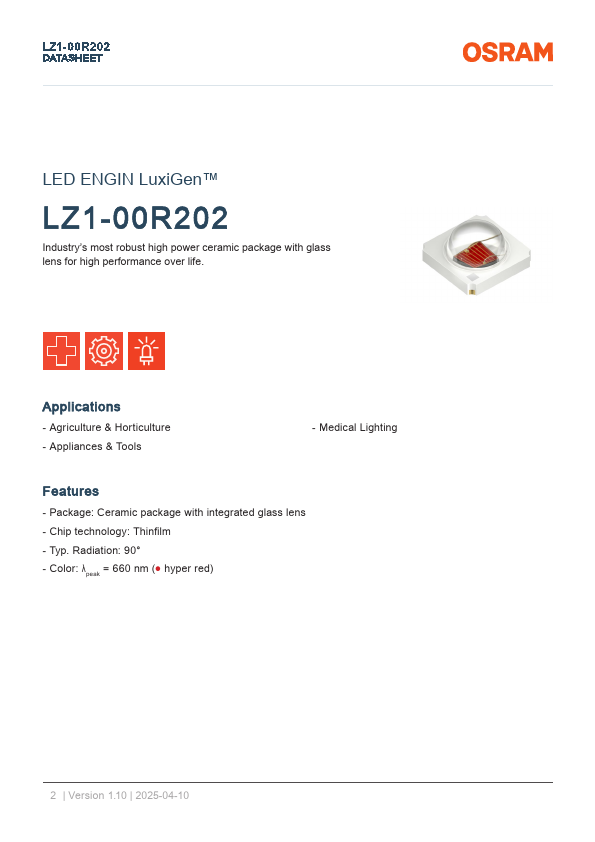

LZ1-00R202
LZ1-00R202 is LED manufactured by ams OSRAM.
Features
- Package: Ceramic package with integrated glass lens
- Chip technology: Thinfilm
- Typ. Radiation: 90°
- Color: λpeak = 660 nm (- hyper red)
2 | Version 1.10 | 2025-04-10
L Z1- 0 0 R 2 0 2 DATASHEET

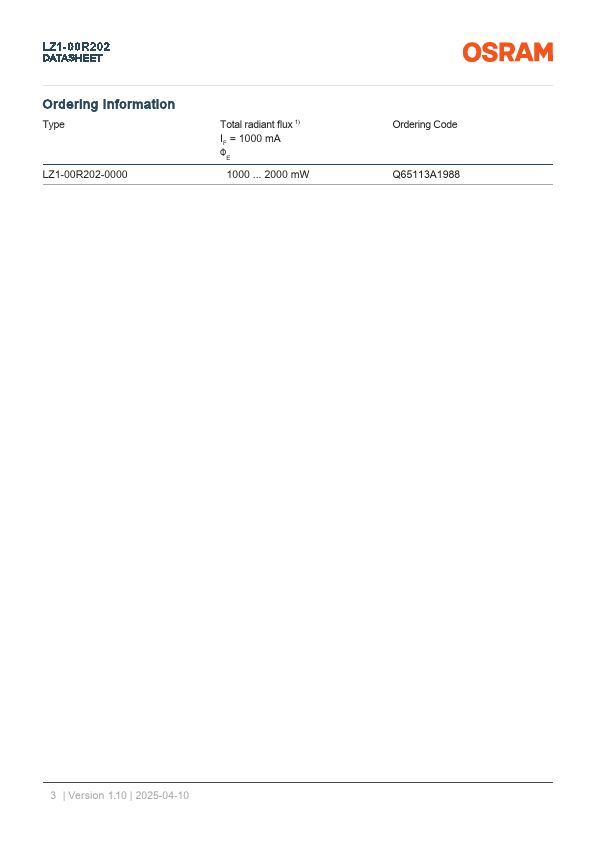

Ordering Information
Type
LZ1-00R202-0000
Total radiant flux 1) IF = 1000 m A ΦE
1000 ... 2000 m W
Ordering Code Q65113A1988
3 | Version 1.10 | 2025-04-10
L Z1- 0 0 R 2 0 2 DATASHEET

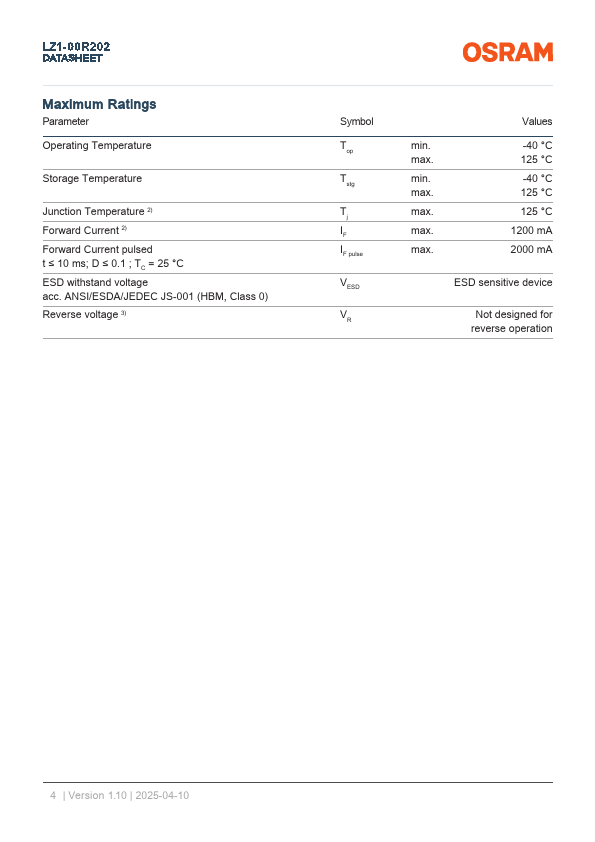

Maximum Ratings
Parameter Operating Temperature
Storage Temperature
Junction Temperature 2) Forward Current 2) Forward Current pulsed t ≤ 10 ms; D ≤ 0.1 ; TC = 25 °C ESD withstand voltage acc. ANSI/ESDA/JEDEC JS-001 (HBM, Class 0) Reverse voltage 3)
Symbol Top
Tstg
Tj IF IF pulse
VESD
VR min. max. min. max. max. max. max.
Values
-40 °C 125 °C -40 °C 125 °C 125 °C 1200 m A 2000 m A
ESD sensitive device
Not designed for reverse operation
4 | Version 1.10 | 2025-04-10
L Z1- 0 0 R 2 0 2 DATASHEET
Characteristics
IF = 1000 m A; TC = 25 °C Parameter Total radiant flux 4) Photosynthetic Photon Flux (PPF) 4) λ = 400
- 700 nm Peak Wavelength 5) IF = 1000 m A
Viewing angle at 50% IV Forward Voltage 6)4) IF = 1000 m...
