LZ1-00R602

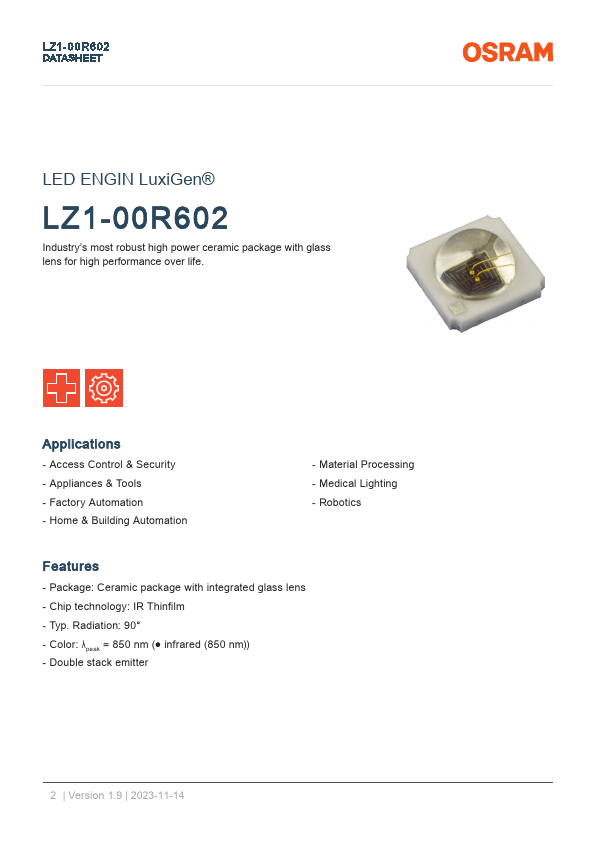

LZ1-00R602 is LED manufactured by ams OSRAM.
Features
- Package: Ceramic package with integrated glass lens
- Chip technology: IR Thinfilm
- Typ. Radiation: 90°
- Color: λpeak = 850 nm (- infrared (850 nm))
- Double stack emitter
2 | Version 1.9 | 2023-11-14
L Z1- 0 0 R 6 0 2 DATASHEET
Ordering Information
Type
LZ1-00R602-0000
Total radiant flux 1) IF = 1000 m A ΦE
950 ... 1600 m W
Ordering Code Q65113A2073
3 | Version 1.9 | 2023-11-14
L Z1- 0 0 R 6 0 2 DATASHEET

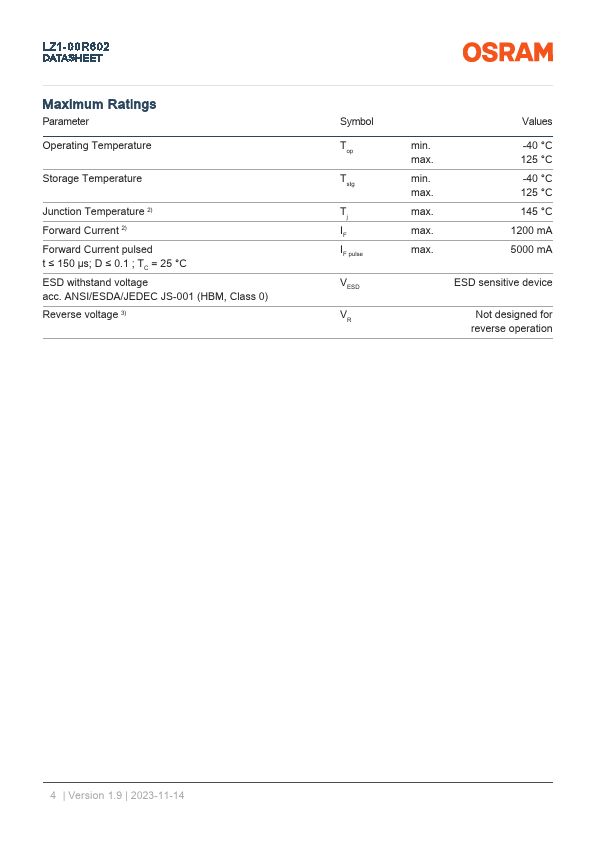

Maximum Ratings
Parameter Operating Temperature
Storage Temperature
Junction Temperature 2) Forward Current 2) Forward Current pulsed t ≤ 150 µs; D ≤ 0.1 ; TC = 25 °C ESD withstand voltage acc. ANSI/ESDA/JEDEC JS-001 (HBM, Class 0) Reverse voltage 3)
Symbol Top
Tstg
Tj IF IF pulse
VESD
VR min. max. min. max. max. max. max.
Values
-40 °C 125 °C -40 °C 125 °C 145 °C 1200 m A 5000 m A
ESD sensitive device
Not designed for reverse operation
4 | Version 1.9 | 2023-11-14
L Z1- 0 0 R 6 0 2 DATASHEET
Characteristics
IF = 1000 m A; TC = 25 °C Parameter Total radiant flux 4) Peak Wavelength 5) IF = 1000 m A
Viewing angle at 50% IV Forward Voltage 6)4) IF = 1000 m A
Reverse...
