LZ4-00R108

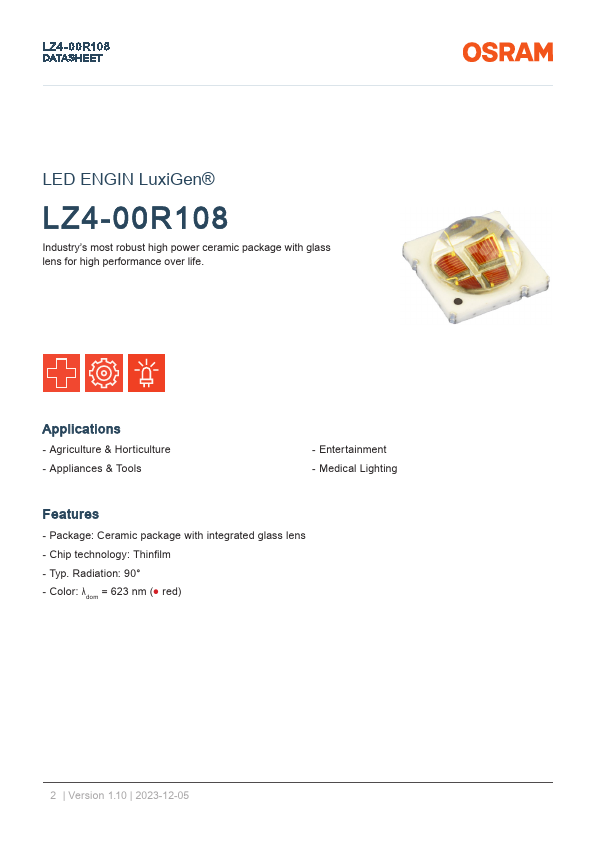

LZ4-00R108 is LED manufactured by ams OSRAM.
Features
- Package: Ceramic package with integrated glass lens
- Chip technology: Thinfilm
- Typ. Radiation: 90°
- Color: λdom = 623 nm (- red)
2 | Version 1.10 | 2023-12-05
L Z4
- 0 0 R10 8 DATASHEET

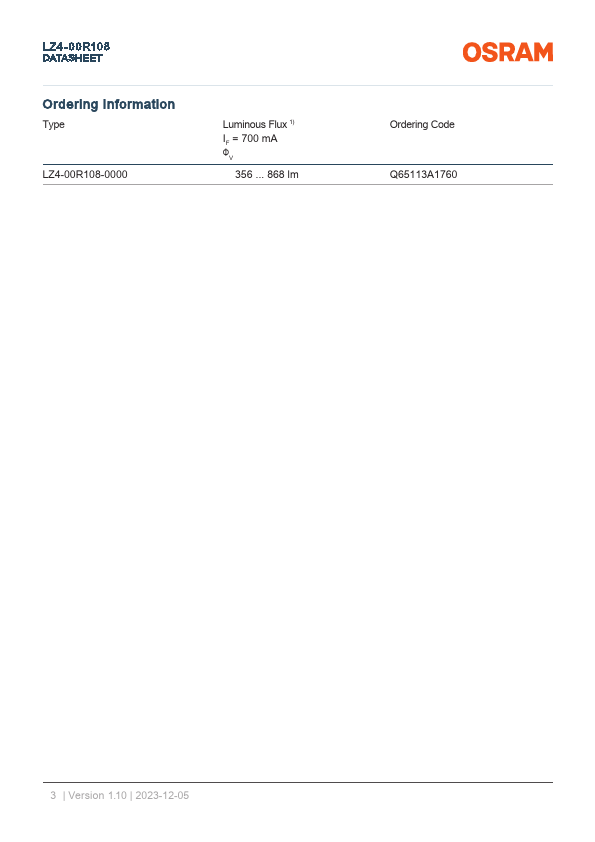

Ordering Information
Type
LZ4-00R108-0000
Luminous Flux 1) IF = 700 m A ΦV
356 ... 868 lm
Ordering Code Q65113A1760
3 | Version 1.10 | 2023-12-05
L Z4
- 0 0 R10 8 DATASHEET
Maximum Ratings
Parameter Operating Temperature
Storage Temperature
Junction Temperature 2) Forward Current 2) Forward Current pulsed t ≤ 10 ms; D ≤ 0.1 ; TC = 25 °C Reverse voltage 3)
Symbol Top
Tstg
Tj IF IF pulse
VR min. max. min. max. max. max. max.
Values
-40 °C 125 °C -40 °C 125 °C 125 °C 1000 m A 1500 m A
Not designed for reverse operation
4 | Version 1.10 | 2023-12-05
L Z4
- 0 0 R10 8 DATASHEET
Characteristics
IF = 700 m A; TC = 25 °C; all chips operated in series Parameter Luminous Flux 4) Dominant Wavelength 5) IF = 700 m A
Viewing angle at 50% IV Forward Voltage 6)4) IF = 700 m...
