PLT3520D
PLT3520D is Green Laser Diode manufactured by ams OSRAM.
Features
- Efficient radiation source for cw and pulsed operation
- Single mode semiconductor laser
- High modulation bandwidth
- Miniaturized TO38 ICut package
- Laser diode isolated against package
- Typical emission wavelength: 520 nm
2 | Version 1.3 | 2024-10-07
PLT3 520 D DATASHEET

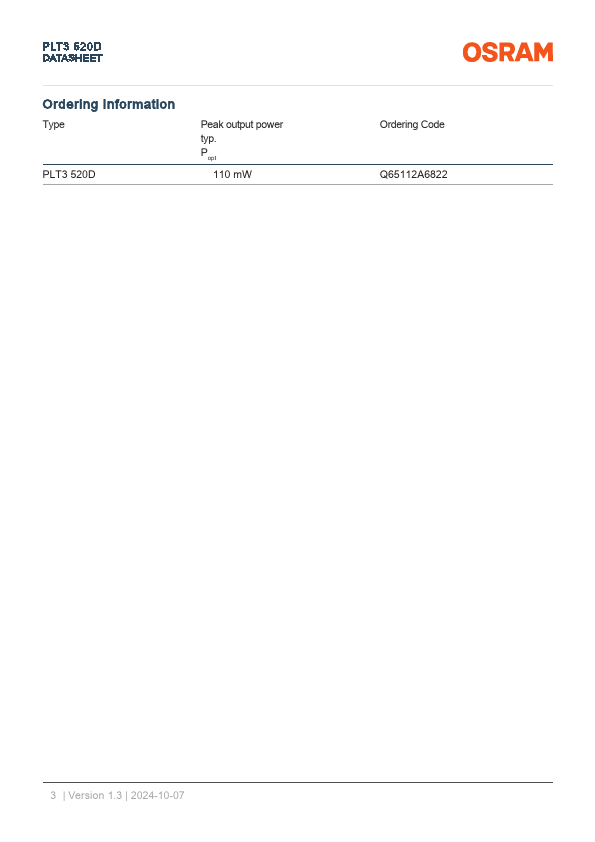

Ordering Information
Type
PLT3 520D
Peak output power typ. Popt
110 m W
Ordering Code Q65112A6822
3 | Version 1.3 | 2024-10-07
PLT3 520 D DATASHEET

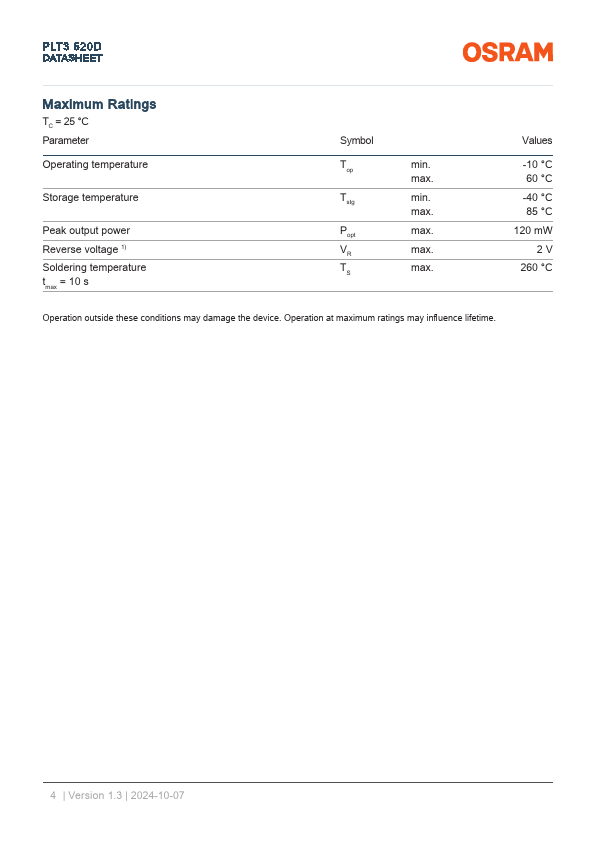

Maximum Ratings
TC = 25 °C Parameter Operating temperature
Storage temperature
Peak output power Reverse voltage 1) Soldering temperature tmax = 10 s
Symbol Top
Tstg
Popt VR TS min. max. min. max. max. max. max.
Values
-10 °C 60 °C -40 °C 85 °C 120 m W
2V 260 °C
Operation outside these conditions may damage the device. Operation at maximum ratings may influence lifetime.
4 | Version 1.3 | 2024-10-07
PLT3 520 D DATASHEET
Characteristics
Popt = 110 m W; Tcase = 25 °C Parameter Operating current 2) Operating voltage 3) Peak wavelength 4)5)
Spectral bandwidth (FWHM) Beam divergence (FWHM) parallel to pn-junction
Beam divergence (FWHM) perpendicular to...
