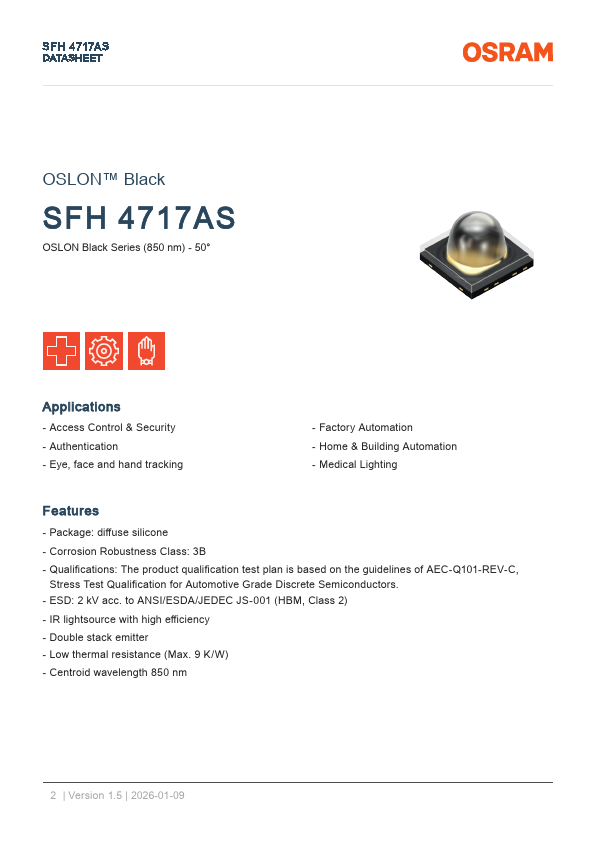

SFH4717AS
Features
- Package: diffuse silicone
- Corrosion Robustness Class: 3B
- Qualifications: The product qualification test plan is based on the guidelines of AEC-Q101-REV-C, Stress Test Qualification for Automotive Grade Discrete Semiconductors.
- ESD: 2 k V acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
- IR lightsource with high efficiency
- Double stack emitter
- Low thermal resistance (Max. 9 K/W)
- Centroid wavelength 850 nm
2 | Version 1.5 | 2026-01-09
SFH 4717AS DATASHEET

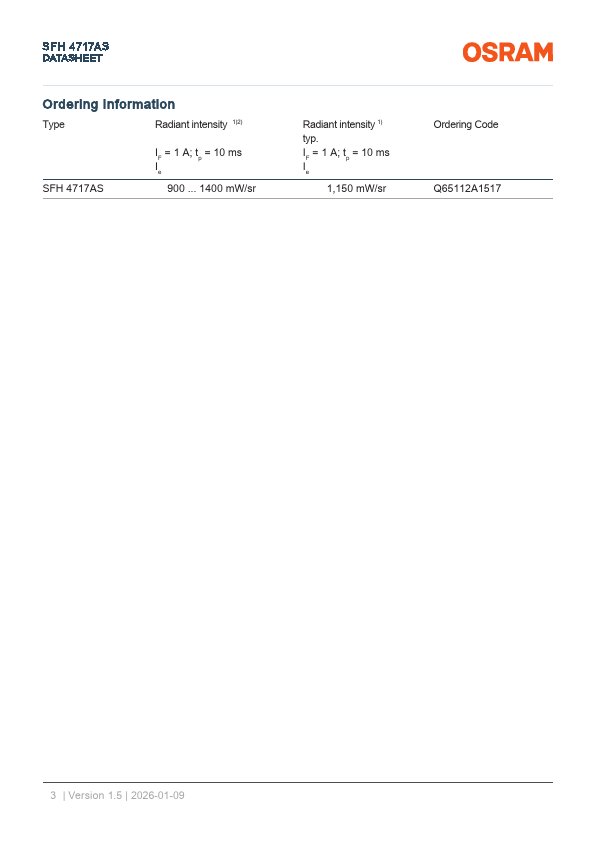

Ordering Information
Type
Radiant intensity 1)2)
SFH 4717AS
IF = 1 A; tp = 10 ms Ie
900 ... 1400 m W/sr
Radiant intensity 1) typ. IF = 1 A; tp = 10 ms Ie
1,150 m W/sr
Ordering Code Q65112A1517
3 | Version 1.5 | 2026-01-09
SFH 4717AS DATASHEET
Maximum Ratings
TA = 25 °C Parameter
Operating temperature
Storage temperature
Junction temperature Forward current
Forward current pulsed tp ≤ 800 µs; D ≤ 0.005 Reverse current 3) Power consumption ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001...
