OA172AP
OA172AP is AC Fans manufactured by Orion Fans.

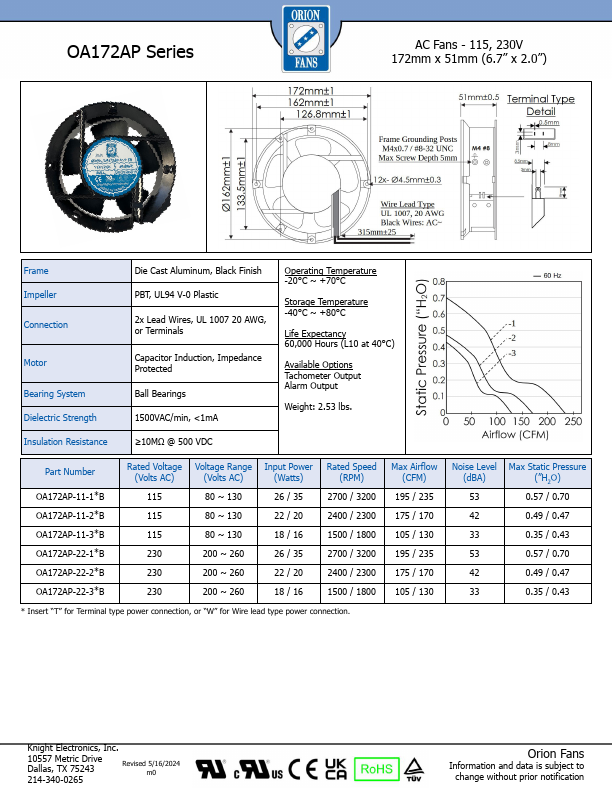

OA172AP Series
AC Fans
- 115, 230V 172mm x 51mm (6.7” x 2.0”)
Frame Impeller Connection
Motor Bearing System Dielectric Strength
Die Cast Aluminum, Black Finish PBT, UL94 V-0 Plastic
2x Lead Wires, UL 1007 20 AWG, or Terminals
Capacitor Induction, Impedance Protected
Ball Bearings 1500VAC/min, <1mA
Operating Temperature -20°C ~ +70°C
Storage Temperature -40°C ~ +80°C
Life Expectancy 60,000 Hours (L10 at 40°C)
Available Options Tachometer Output Alarm Output
Weight: 2.53 lbs.
Insulation Resistance
≥10MΩ @ 500 VDC
Part Number
Rated Voltage Voltage Range Input Power Rated Speed
(Volts AC)
(Volts AC)
(Watts)
(RPM)
OA172AP-11-1- B
80 ~ 130
26 / 35
2700 / 3200
OA172AP-11-2-...
