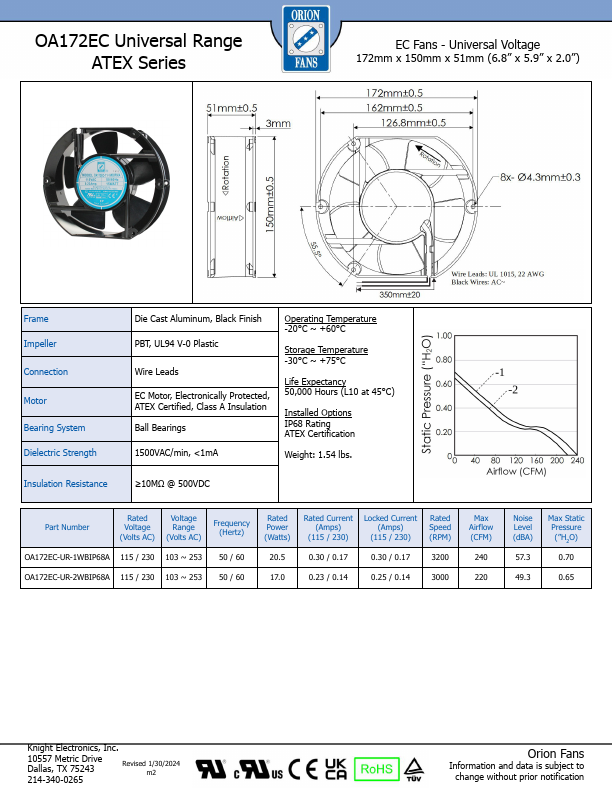

OA172EC
OA172EC Universal Range ATEX Series
EC Fans
- Universal Voltage 172mm x 150mm x 51mm (6.8” x 5.9” x 2.0”)
Frame Impeller Connection Motor Bearing System Dielectric Strength Insulation Resistance
Die Cast Aluminum, Black Finish PBT, UL94 V-0 Plastic
Wire Leads EC Motor, Electronically Protected, ATEX Certified, Class A Insulation Ball Bearings 1500VAC/min, <1m A
Operating Temperature -20°C ~ +60°C
Storage Temperature -30°C ~ +75°C
Life Expectancy 50,000 Hours (L10 at 45°C)
Installed Options IP68 Rating ATEX Certification
Weight: 1.54 lbs.
≥10MΩ @ 500VDC
Part Number
Rated Voltage (Volts AC)
Voltage Range (Volts AC)
Frequency (Hertz)
Rated Power (Watts)
Rated Current (Amps)
(115 / 230)
Locked Current (Amps)
(115 / 230)
Rated Speed (RPM)
OA172EC-UR-1WBIP68A 115 / 230 103 ~ 253 50 / 60
0.30 / 0.17
0.30 / 0.17
OA172EC-UR-2WBIP68A 115 / 230 103 ~ 253 50 / 60
0.23 / 0.14
0.25 / 0.14
Max Airflow (CFM)
Noise Level (d BA)
Max Static...
