OD1238-24LBXC datasheet by Orion Fans.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | OD1238-24LBXC |
|---|---|
| Datasheet | OD1238-24LBXC OD1238-12HBXC Datasheet (PDF) |
| File Size | 620.69 KB |
| Manufacturer | Orion Fans |
| Description | DC Fans |
|
|

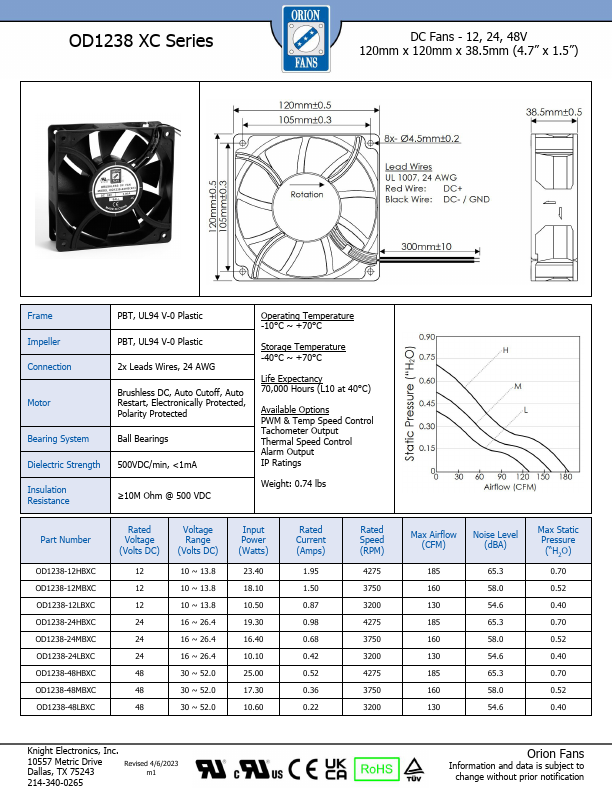

OD1238 XC Series DC Fans - 12, 24, 48V 120mm x 120mm x 38.5mm (4.7” x 1.5”) Frame Impeller Connection Motor Bearing System Dielectric Strength Insulation Resistance PBT, UL94 V-0 Plastic PBT, UL94 V-0 Plastic 2x Leads Wires, 24 AWG Brushless DC, Auto Cutoff,.
View all Orion Fans datasheets
| Part Number | Description |
|---|---|
| OD1238-24LBXC01A | DC Fans |
| OD1238-24LBXC10A | DC Fans |
| OD1238-24LB01 | DC Fans |
| OD1238-24LB01A | DC Fans |
| OD1238-24LB02A | DC Fans |
| OD1238-24LB10A | DC Fans |
| OD1238-24LBVXC | High Performance DC Fans |
| OD1238-24LBVXC10A | High Performance DC Fans |
| OD1238-24H3B01 | DC Fans |
| OD1238-24H3B01A | DC Fans |
