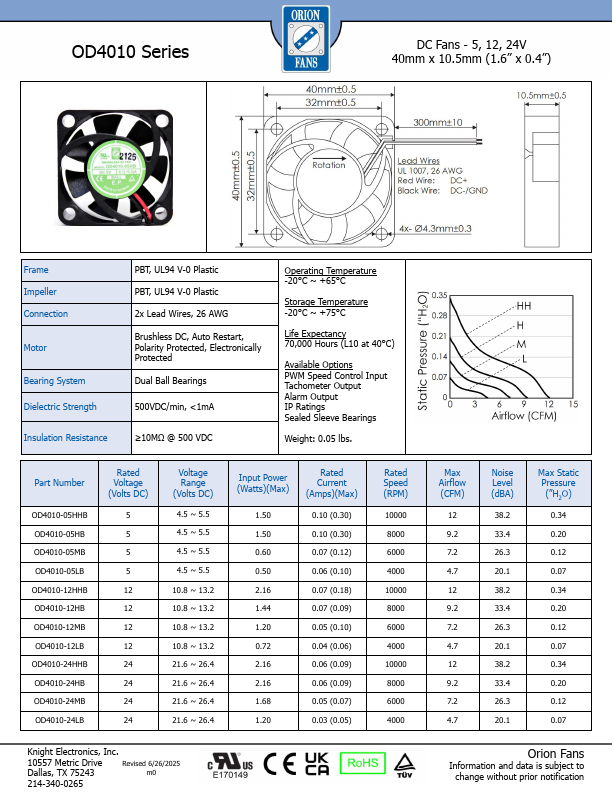

OD4010
OD4010 Series
DC Fans
- 5, 12, 24V 40mm x 10.5mm (1.6” x 0.4”)
Frame Impeller Connection
Motor
Bearing System Dielectric Strength Insulation Resistance
PBT, UL94 V-0 Plastic PBT, UL94 V-0 Plastic 2x Lead Wires, 26 AWG Brushless DC, Auto Restart, Polarity Protected, Electronically Protected Dual Ball Bearings
500VDC/min, <1m A
≥10MΩ @ 500 VDC
Operating Temperature -20°C ~ +65°C
Storage Temperature -20°C ~ +75°C
Life Expectancy 70,000 Hours (L10 at 40°C)
Available Options PWM Speed Control Input Tachometer Output Alarm Output IP Ratings Sealed Sleeve Bearings
Weight: 0.05 lbs.
Part Number
OD4010-05HHB OD4010-05HB OD4010-05MB OD4010-05LB OD4010-12HHB OD4010-12HB OD4010-12MB OD4010-12LB OD4010-24HHB OD4010-24HB OD4010-24MB OD4010-24LB
Rated Voltage (Volts DC)
5 5 5 5 12 12 12 12 24 24 24 24
Voltage Range (Volts DC) 4.5 ~ 5.5 4.5 ~ 5.5 4.5 ~ 5.5 4.5 ~ 5.5 10.8 ~ 13.2 10.8 ~ 13.2 10.8 ~ 13.2 10.8 ~ 13.2 21.6 ~ 26.4 21.6 ~ 26.4 21.6 ~ 26.4 21.6 ~ 26.4
Input Power (Watts)(Max)
1.50...
