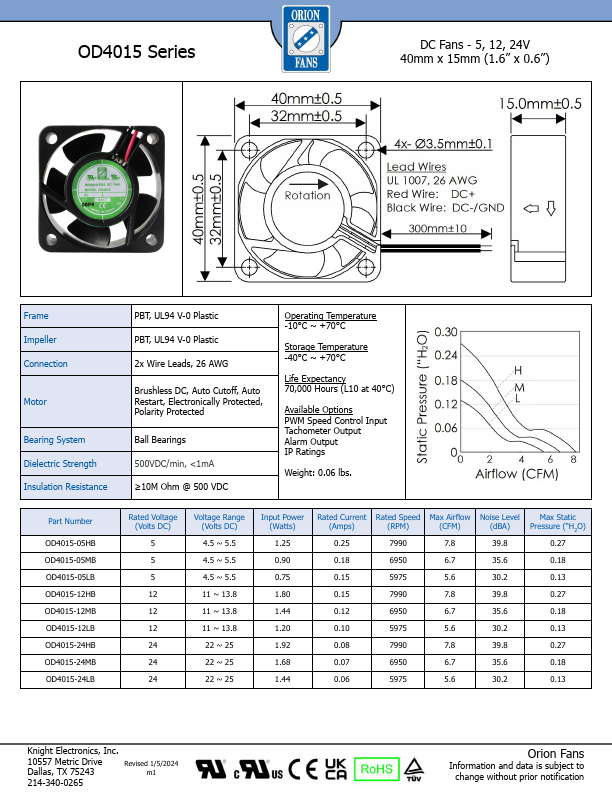

OD4015
OD4015 Series
DC Fans
- 5, 12, 24V 40mm x 15mm (1.6” x 0.6”)
Frame Impeller Connection
Motor
Bearing System Dielectric Strength Insulation Resistance
PBT, UL94 V-0 Plastic PBT, UL94 V-0 Plastic 2x Wire Leads, 26 AWG
Brushless DC, Auto Cutoff, Auto Restart, Electronically Protected, Polarity Protected
Ball Bearings 500VDC/min, <1m A ≥10M Ohm @ 500 VDC
Operating Temperature -10°C ~ +70°C
Storage Temperature -40°C ~ +70°C
Life Expectancy 70,000 Hours (L10 at 40°C)
Available Options PWM Speed Control Input Tachometer Output Alarm Output IP Ratings
Weight: 0.06 lbs.
Part Number
OD4015-05HB OD4015-05MB OD4015-05LB OD4015-12HB OD4015-12MB OD4015-12LB OD4015-24HB OD4015-24MB OD4015-24LB
Rated Voltage (Volts DC) 5 5 5 12 12 12 24 24 24
Voltage Range (Volts DC) 4.5 ~ 5.5 4.5 ~ 5.5 4.5 ~ 5.5 11 ~ 13.8 11 ~ 13.8 11 ~ 13.8 22 ~ 25 22 ~ 25 22 ~ 25
Input Power (Watts) 1.25 0.90 0.75 1.80 1.44 1.20 1.92 1.68 1.44
Rated Current (Amps)
Rated Speed (RPM)
Max Airflow (CFM)
Noise...
