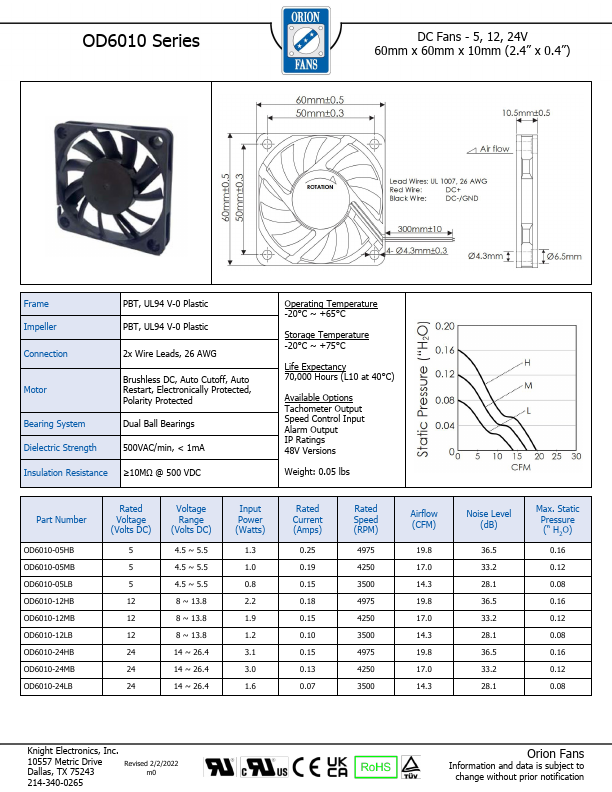

OD6010
OD6010 Series
DC Fans
- 5, 12, 24V 60mm x 60mm x 10mm (2.4” x 0.4”)
Frame Impeller
PBT, UL94 V-0 Plastic PBT, UL94 V-0 Plastic
Connection
2x Wire Leads, 26 AWG
Motor Bearing System Dielectric Strength
Brushless DC, Auto Cutoff, Auto Restart, Electronically Protected, Polarity Protected
Dual Ball Bearings
500VAC/min, < 1m A
Insulation Resistance ≥10MΩ @ 500 VDC
Operating Temperature -20°C ~ +65°C
Storage Temperature -20°C ~ +75°C
Life Expectancy 70,000 Hours (L10 at 40°C)
Available Options Tachometer Output Speed Control Input Alarm Output IP Ratings 48V Versions
Weight: 0.05 lbs
Part Number
OD6010-05HB OD6010-05MB OD6010-05LB OD6010-12HB OD6010-12MB OD6010-12LB OD6010-24HB OD6010-24MB OD6010-24LB
Rated Voltage (Volts DC)
5 5 5 12 12 12 24 24 24
Voltage Range (Volts DC)
4.5 ~ 5.5 4.5 ~ 5.5 4.5 ~ 5.5 8 ~ 13.8 8 ~ 13.8 8 ~ 13.8 14 ~ 26.4 14 ~ 26.4 14 ~ 26.4
Input Power (Watts)
1.3 1.0 0.8 2.2 1.9 1.2 3.1 3.0 1.6
Rated Current (Amps)
0.25 0.19 0.15 0.18 0.15 0.10 0.15 0.13...
