OD8025-05HB datasheet by Orion Fans.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | OD8025-05HB |
|---|---|
| Datasheet | OD8025-05HB OD8025-12HHB Datasheet (PDF) |
| File Size | 1.16 MB |
| Manufacturer | Orion Fans |
| Description | DC Fans |
|
|

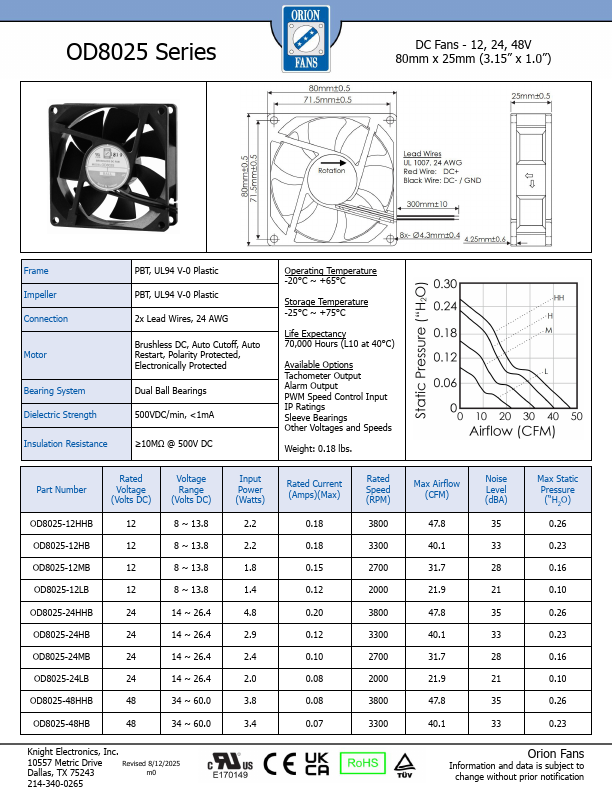

OD8025 Series DC Fans - 12, 24, 48V 80mm x 25mm (3.15” x 1.0”) Frame Impeller Connection Motor Bearing System Dielectric Strength Insulation Resistance PBT, UL94 V-0 Plastic PBT, UL94 V-0 Plastic 2x Lead Wires, 24 AWG Brushless DC, Auto Cutoff, Auto Restart,.
View all Orion Fans datasheets
| Part Number | Description |
|---|---|
| OD8025-05LB | DC Fans |
| OD8025-05LLB | DC Fans |
| OD8025-05MB | DC Fans |
| OD8025-12HB | DC Fans |
| OD8025-12HBIP68 | DC Fans |
| OD8025-12HBIP69K | DC Fans |
| OD8025-12HHB | DC Fans |
| OD8025-12HHBIP68 | DC Fans |
| OD8025-12LB | DC Fans |
| OD8025-12LBIP68 | DC Fans |
