OD8025-05LB Datasheet | Orion Fans

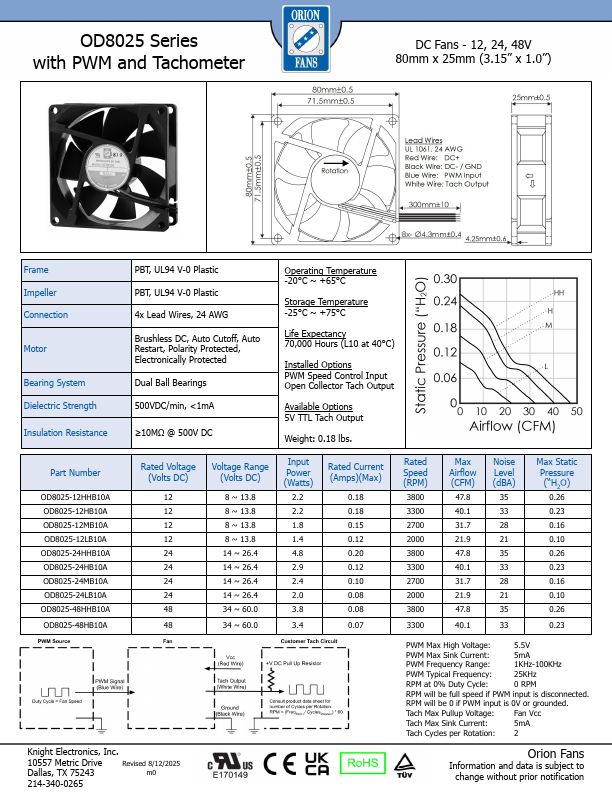

OD8025 Series DC Fans - 12, 24, 48V 80mm x 25mm (3.15” x 1.0”) Frame Impeller Connection Motor Bearing System Dielectric Strength Insulation Resistance PBT, UL94 V-0 Plastic PBT, UL94 V-0 Plastic 2x Lead Wires, 24 AWG Brushless DC, Auto Cutoff, Auto Restart, Polarity Protected, Electronically Protected Dual Ball Bearings 500VDC/min, <1m A ≥10MΩ @ 500V DC Operating Temperature -20°C ~ +65°C Storage Temperature -25°C ~ +75°C Life Expectancy 70,000 Hours (L10 at 40°C) Available Options Tachometer Output Alarm Output PWM Speed Control Input IP Ratings Sleeve Bearings Other Voltages and Speeds Weight: 0.18 lbs. Part Number Rated Voltage (Volts DC) OD8025-12HHB OD8025-12HB OD8025-12MB OD8025-12LB OD8025-24HHB OD8025-24HB OD8025-24MB OD8025-24LB OD8025-48HHB OD8025-48HB Voltage Range (Volts DC) 8 ~ 13.8 8 ~ 13.8 8 ~ 13.8 8 ~ 13.8 14 ~ 26.4 14 ~ 26.4 14 ~ 26.4 14 ~ 26.4 34 ~ 60.0 34 ~ 60.0 Input Power...
