OD8025-24HBIP68
OD8025-24HBIP68 is DC Fans manufactured by Orion Fans.
- Part of the OD8025 comparator family.
- Part of the OD8025 comparator family.

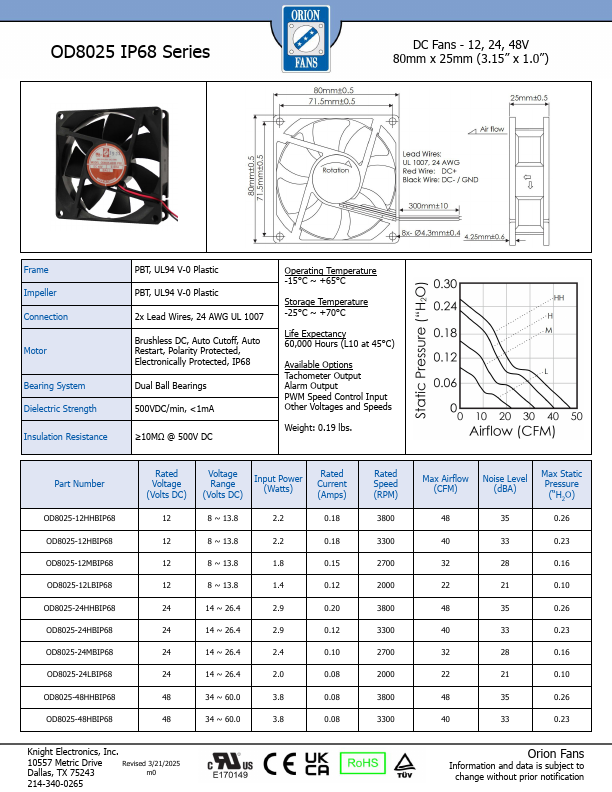

OD8025 IP68 Series
DC Fans
- 12, 24, 48V 80mm x 25mm (3.15” x 1.0”)
Frame Impeller Connection
Motor
Bearing System Dielectric Strength Insulation Resistance
PBT, UL94 V-0 Plastic PBT, UL94 V-0 Plastic 2x Lead Wires, 24 AWG UL 1007
Brushless DC, Auto Cutoff, Auto Restart, Polarity Protected, Electronically Protected, IP68
Dual Ball Bearings 500VDC/min, <1m A
≥10MΩ @ 500V DC
Operating Temperature -15°C ~ +65°C
Storage Temperature -25°C ~ +70°C
Life Expectancy 60,000 Hours (L10 at 45°C)
Available Options Tachometer Output Alarm Output PWM Speed Control Input Other Voltages and Speeds
Weight: 0.19 lbs.
Part Number
OD8025-12HHBIP68 OD8025-12HBIP68 OD8025-12MBIP68 OD8025-12LBIP68 OD8025-24HHBIP68 OD8025-24HBIP68 OD8025-24MBIP68 OD8025-24LBIP68 OD8025-48HHBIP68 OD8025-48HBIP68
Rated Voltage (Volts DC)
Voltage Range (Volts DC)
Input Power (Watts)
Rated Current (Amps)
8 ~ 13.8
8 ~ 13.8
8 ~ 13.8
8 ~ 13.8
14 ~ 26.4
14 ~ 26.4
14 ~ 26.4
14 ~ 26.4
34 ~...
