OD8025-24HBIP69K
OD8025-24HBIP69K is DC Fans manufactured by Orion Fans.
- Part of the OD8025-12HBIP69K comparator family.
- Part of the OD8025-12HBIP69K comparator family.

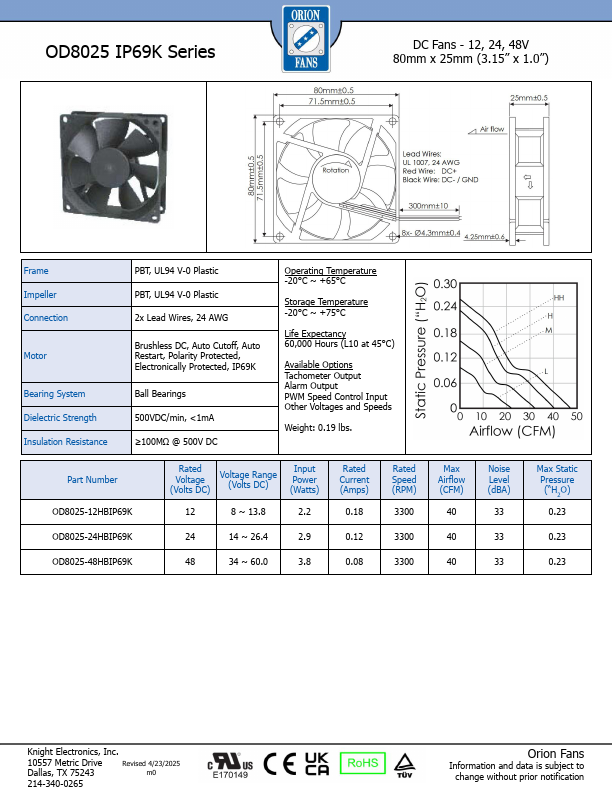

OD8025 IP69K Series
DC Fans
- 12, 24, 48V 80mm x 25mm (3.15” x 1.0”)
Frame Impeller Connection
Motor
Bearing System Dielectric Strength Insulation Resistance
PBT, UL94 V-0 Plastic PBT, UL94 V-0 Plastic 2x Lead Wires, 24 AWG
Brushless DC, Auto Cutoff, Auto Restart, Polarity Protected, Electronically Protected, IP69K
Ball Bearings 500VDC/min, <1m A ≥100MΩ @ 500V DC
Operating Temperature -20°C ~ +65°C
Storage Temperature -20°C ~ +75°C
Life Expectancy 60,000 Hours (L10 at 45°C)
Available Options Tachometer Output Alarm Output PWM Speed Control Input Other Voltages and Speeds
Weight: 0.19 lbs.
Part Number OD8025-12HBIP69K OD8025-24HBIP69K OD8025-48HBIP69K
Rated Voltage (Volts DC)
Voltage Range (Volts DC)
Input Power (Watts)
8 ~ 13.8
14 ~ 26.4
34 ~ 60.0
Rated Current (Amps)
Rated Speed (RPM)
Max Airflow (CFM)
Noise Level (d BA)
Max Static Pressure (“H2O)
Knight Electronics, Inc.
10557 Metric Drive Revised 4/23/2025
Dallas, TX 75243 m0
214-340-0265...
