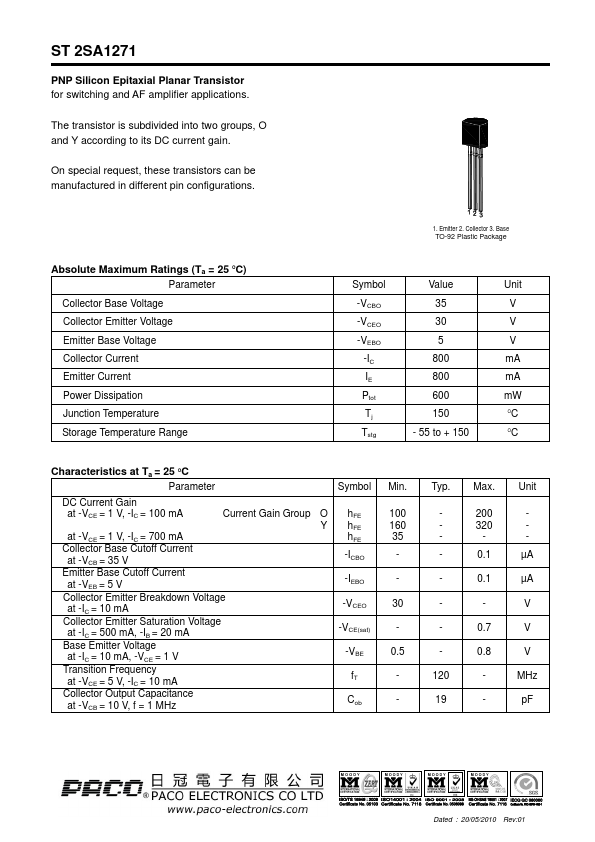

PACO 2SA1271
PNP Silicon Epitaxial Planar Transistor
| Part No. | 2SA1271 |
|---|---|
| Datasheet | 2SA1271 Download |
| Manufacturer | PACO |
| Description | PNP Silicon Epitaxial Planar Transistor |
| Buy | Stock & Price |
ABSOLUTE MAXIMUM RATINGS
(Ta = 25 OC) Parameter Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current Emitter Current Power Dissipation Junction Temperature Storage Temperature Range 1. Emitter 2. Collector 3. Base TO-92 Plastic Package Symbol Value Unit -VCBO -VCEO -VEBO -IC IE Ptot Tj Tstg 35 30 5 800 800 600 150 - 55 to + 150 V V V mA mA mW OC OC Characteristics at Ta = 25 OC Parameter Symbol Min. Typ. Max. Unit DC Current Gain at -VCE = 1 V, -IC = 100 mA at -VCE = 1 V, -IC = 700 mA Current Gain Group O hFE 100 - 200 - Y hFE 160 - 320 - hFE 35 - - - Collector Base Cutoff Current at -VCB = 35 V -ICBO - - 0.1 µA Emitter Base Cutoff Current at -VEB = 5 V -IEBO - - 0.1 µA Collector Emitter Breakdown Voltage at -IC = 10 mA -VCEO 30 - - V Collector Emitter Saturation Voltage at -IC = 500 mA, -IB = 20 mA -VCE(sat) - - 0.7 V Base Emitter Voltage at -IC = 10 mA, -VCE = 1 V -VBE 0.5 - 0.8 V Transition Frequency at -VCE = 5 V, -IC = 10 mA fT - 120 - MHz Collec...
