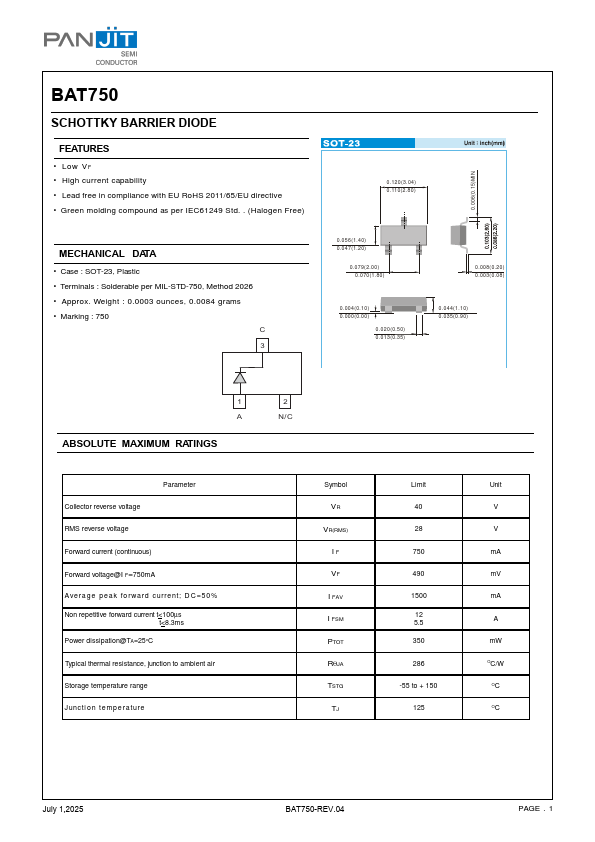

PANJIT International BAT750
SCHOTTKY BARRIER DIODE
| Part No. | BAT750 |
|---|---|
| Datasheet | BAT750 Download |
| Manufacturer | PANJIT International |
| Description | SCHOTTKY BARRIER DIODE |
| Buy | Stock & Price |
FEATURES
● Low VF● High current capability
● Lead free in compliance with EU RoHS 2011/65/EU directive
● Green molding compound as per IEC61249 Std. . (Halogen Free)
MECHANICAL DATA
● Case : SOT-23, Plastic● Terminals : Solderable per MIL-STD-750, Method 2026
● Approx. Weight : 0.0003 ounces, 0.0084 grams
● Marking : 750 C 3 0.120(3.04) 0 . 11 0 ( 2 . 8 0 ) 0.056(1.40) 0.047(1.20) 0.079(2.00) 0.070(1.80) 0.004(0.10) 0.000(0.00) 0.020(0.50) 0.013(0.35) 0.008(0.20) 0.003(0.08) 0.044(1.10) 0.035(0.90) 0.006(0.15)MIN. 1 A
ABSOLUTE MAXIMUM RATINGS
Parameter Collector reverse voltage RMS reverse voltage Forward current (continuous) Forward voltage@I F=750mA Average peak forward current; D C =50% Non repetitive forward current t<100μs t<8.3ms Power dissipation@TA=25oC Typical thermal resistance, junction to ambient air Storage temperature range Junction temperature 2 N/C Symbol VR VR(RMS) IF VF I FAV I FSM PTOT RΘJA TSTG TJ Limit 40 28 750 490 1500 12 5.5 350 286 -55 to + 150 125 Unit V V mA mV mA A mW OC/W OC OC July 1,2025 BAT750-REV.04 PAGE .
