BAT750

Manufacturer: Yangjie Electronic

BAT750 datasheet by Yangjie Electronic.

BAT750 datasheet preview

BAT750 Datasheet Details

Part number	BAT750
Datasheet	BAT750-YangzhouYangjie.pdf
File Size	360.83 KB
Manufacturer	Yangjie Electronic
Description	Schottky Rectifier

BAT750 Overview

BAT750 Schottky Rectifier RoHS PLIANT.

BAT750 Key Features

Moisture sensitivity level 1
Reverse voltage：40V
Average forward current ：500mA
High frequency and low voltage rectifier
Package： SOT-23
Terminals：Tin plated leads, solderable per J-STD-002 and JESD22-B102

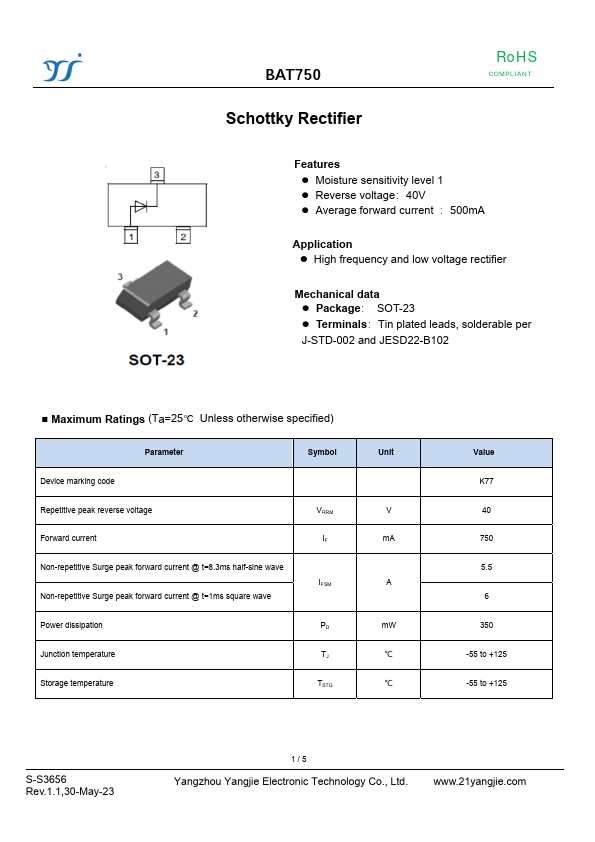

Maximum Ratings (Ta=25℃ Unless otherwise specified)
55 to +125 -55 to +125

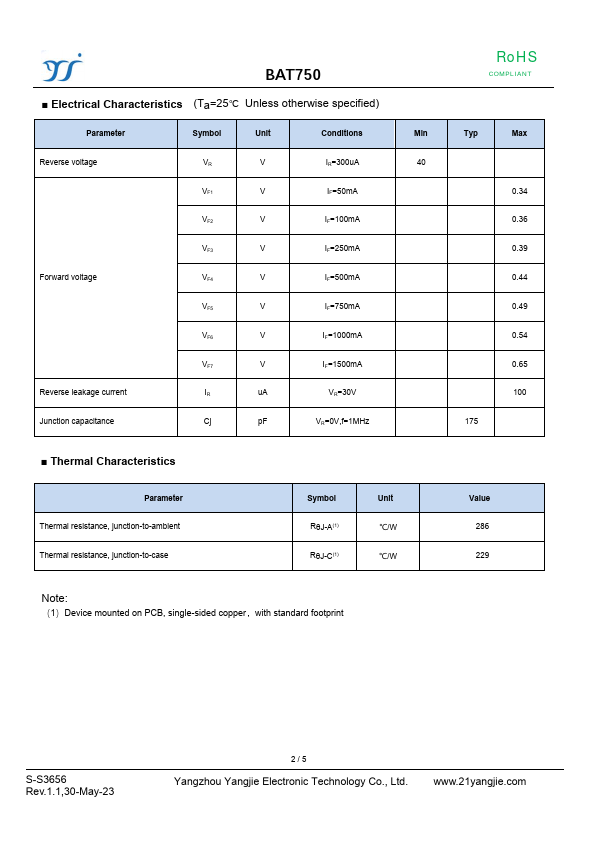

Electrical Characteristics (Ta=25℃ Unless otherwise specified)
Thermal Characteristics
