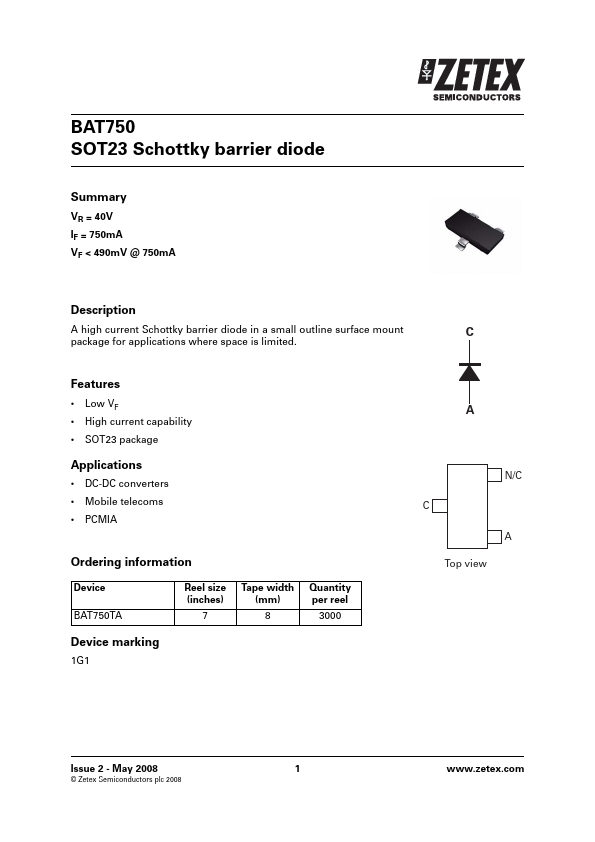

BAT750
BAT750 is SOT23 Schottky barrier diode manufactured by Zetex Semiconductors.
BAT750 SOT23 Schottky barrier diode
Summary
VR = 40V IF = 750mA VF < 490mV @ 750mA
Description
A high current Schottky barrier diode in a small outline surface mount
C package for applications where space is limited.
Features
- Low VF
- High current capability
- SOT23 package
Applications
- DC-DC converters
- Mobile teles
- PCMIA
Ordering information
Device BAT750TA
Reel size (inches)
Tape width (mm)
Quantity per reel
Device marking
1G1
N/C C
A Top view
Issue 2
- May 2008
© Zetex Semiconductors plc...
