PANJIT International BAV101

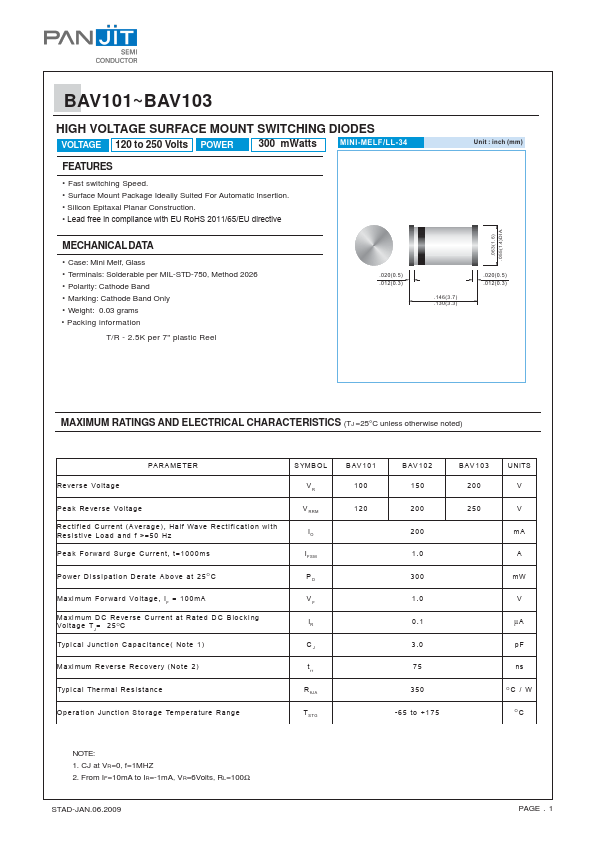

300mW HIGH VOLTAGE SURFACE MOUNT SWITCHING DIODES
| Part No. | BAV101 |
|---|---|
| Datasheet | BAV101 Download |
| Manufacturer | PANJIT International |
| Description | 300mW HIGH VOLTAGE SURFACE MOUNT SWITCHING DIODES |
| Buy | Stock & Price |
FEATURES
● Fast switching Speed.● Surface Mount Package Ideally Suited For Automatic Insertion.
● Silicon Epitaxal Planar Construction.
● Lead free in compliance with EU RoHS 2011/65/EU directive
MECHANICAL DATA
● Case: Mini Melf, Glass● Terminals: Solderable per MIL-STD-750, Method 2026
● Polarity: Cathode Band
● Marking: Cathode Band Only
● Weight: 0.03 grams

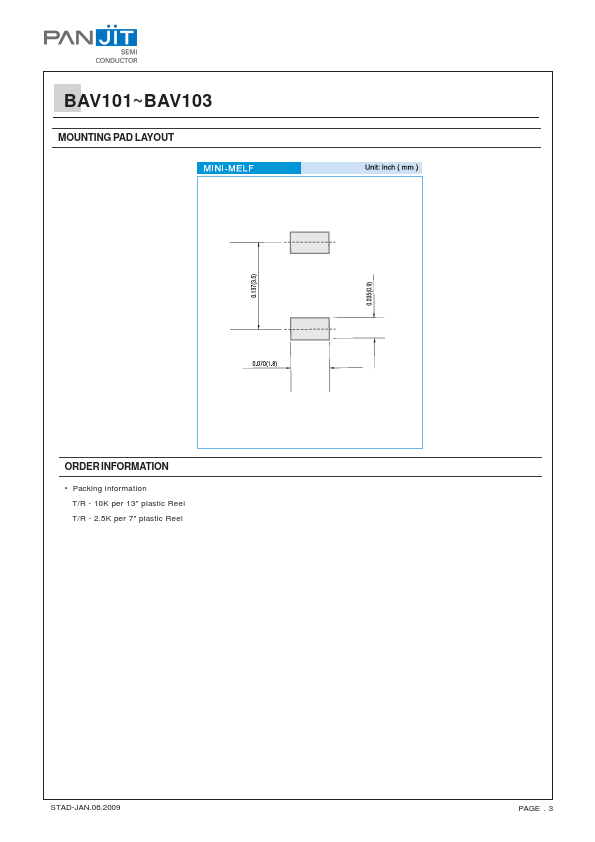

● Packing information T/R - 2.5K per 7" plastic Reel .020(0.5) .012(0.3) Unit : inch (mm) .063(1.6) .055(1.4)DIA. .146(3.7) .130(3.3) .020(0.5) .012(0.3)

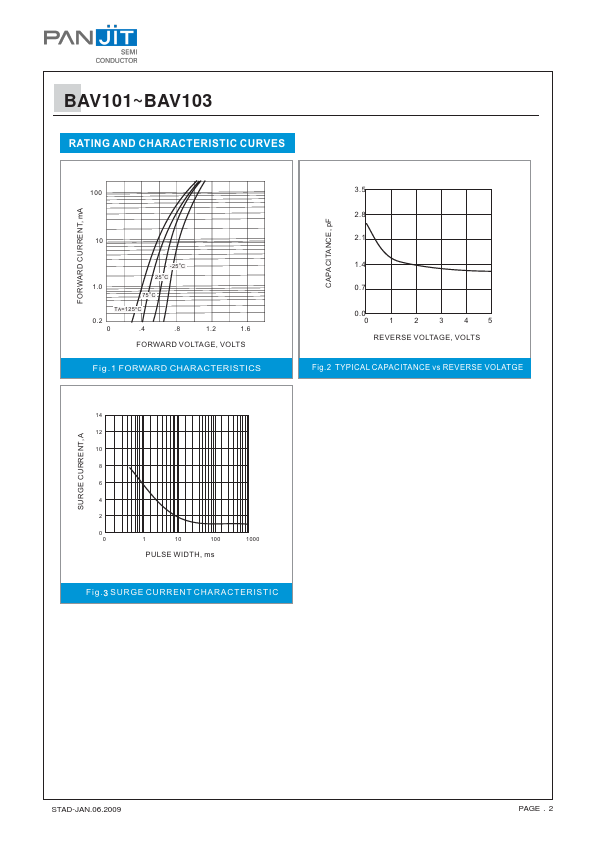

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(TJ =25°C unless otherwise noted) Reverse Voltage PA RA ME TE R Peak Reverse Voltage Rectified Current (Average), Half Wave Rectification with Resistive Load and f >=50 Hz Peak Forward Surge Current, t=1000ms Power Dissipation Derate Above at 25OC Maxi mum F orward Voltage, IF = 100mA Maximum DC Reverse Current at Rated DC Blocking Voltage TJ= 25OC Typ i c a l J unc ti o n C a p a c i ta nc e ( No te 1 ) Maximum Reverse Recovery...
