BAV20WS Datasheet | PanJit Semiconductor

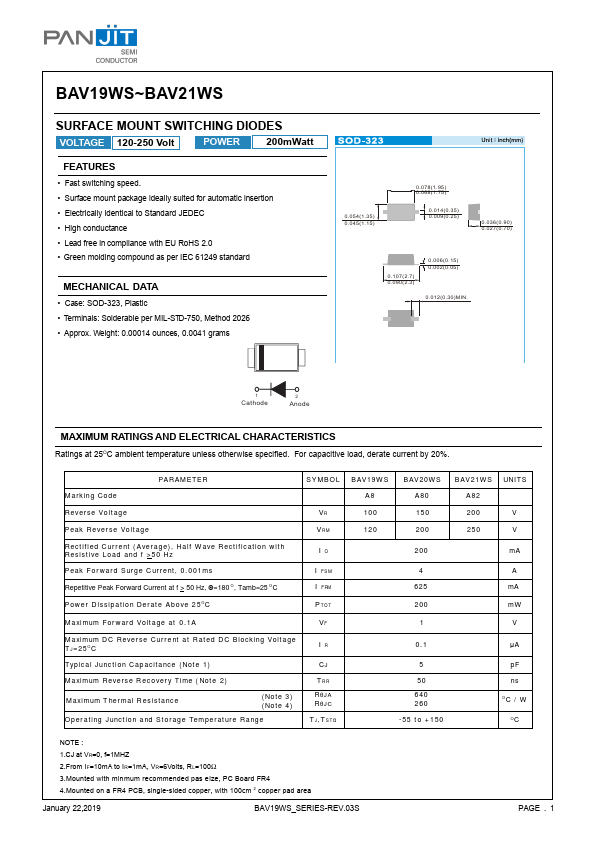

FEATURES - Fast switching speed. - Surface mount package ideally suited for automatic insertion - Electrically identical to Standard JEDEC - High conductance - Lead free in pliance with EU Ro HS 2.0 - Green molding pound as per IEC 61249 standard MECHANICAL DATA - Case: SOD-323, Plastic - Terminals: Solderable per MIL-STD-750, Method 2026 - Approx. Weight: 0.00014 ounces, 0.0041 grams 0.054(1.35) 0.045(1.15) 0.078(1.95) 0.068(1.75) 0.014(0.35) 0.009(0.25) 0.036(0.90) 0.027(0.70) 0.107(2.7) 0.090(2.3) 0.006(0.15) 0.002(0.05) 0.012(0.30)MIN. Cathode Anode MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25OC ambient temperature unless otherwise specified. For capacitive load, derate current by 20%. PARAMETER Marking Code Reverse Voltage Peak Reverse Voltage Rect ified Curr ent ( Aver age) , Half Wave Rectification w it h Resistive Load and f >50 Hz Peak For war d Surge C urr ent, 0.001ms Repetitive Peak Forward Current at f > 50 Hz, =180 O, Tamb=25 OC Power Dissipation Derate Above 25OC SYMBOL BAV19W S A8 V RM BAV20W S A80 150 200 BAV21W S UNITS A82 200 m A I FSM I FRM P TO T 625 m A 200 m...
