Semiware BAV20WS
Surface Mount Fast Switching Doide
| Part No. | BAV20WS |
|---|---|
| Datasheet | BAV20WS Download |
| Manufacturer |  Semiware |
| Description | Surface Mount Fast Switching Doide |
| Buy | Stock & Price |

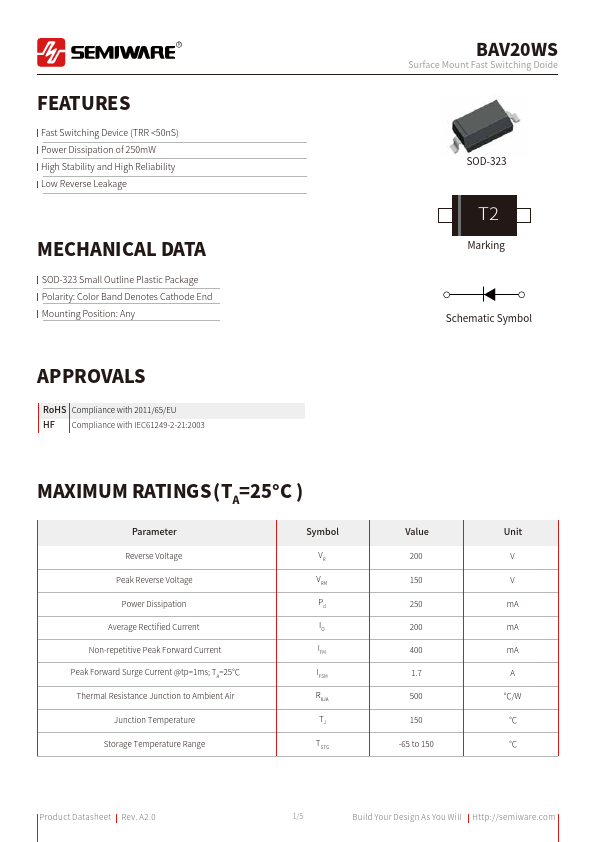

FEATURES
Fast Switching Device (TRR <50nS) Power Dissipation of 250mW High Stability and High Reliability Low Reverse LeakageMECHANICAL DATA
SOD-323 Small Outline Plastic Package Polarity: Color Band Denotes Cathode End Mounting Position: Any APPROVALS RoHS Compliance with 2011/65/EU HF Compliance with IEC61249-2-21:2003MAXIMUM RATINGS
(TA=25°C ) Parameter Reverse Voltage Peak Reverse Voltage Power Dissipation Average Rectified Current Non-repetitive Peak Forward Current Peak Forward Surge Current @tp=1ms; TA=25℃ Thermal Resistance Junction to Ambient Air Junction Temperature Storage Temperature Range Symbol VR VRM Pd IO IFM IFSM RθJA TJ TSTG BAV20WS Surface Mount Fast Switching Doide SOD-323 T2 Marking Schematic Symbol Value 200 150 250 200 400 1.7 500 150 -65 to 150 Unit V V mA mA mA A ℃/W ℃ ℃ Product Datasheet Rev. A2.0 1/5 Build Your Design As You Will R BAV20WS Surface Mount Fast Switching DoideELECTRICAL CHARACTERISTICS
(TA=25°C ) Parameter Breakdown Voltage Reverse Leakage Curr...
