BAV21WS Datasheet

Manufacturer: PanJit Semiconductor

This datasheet includes multiple variants, all published together in a single manufacturer document.

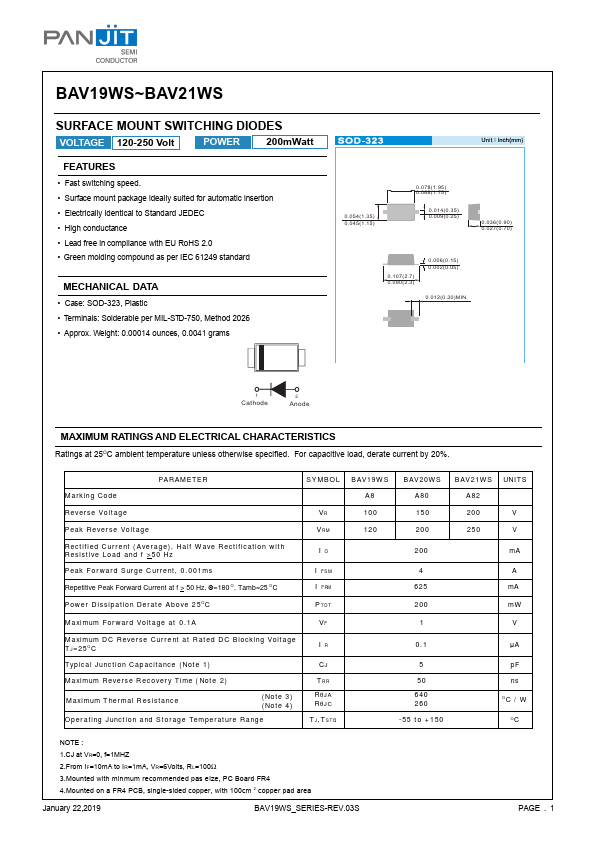

BAV21WS datasheet preview

Datasheet Details

Part number	BAV21WS
Datasheet	BAV21WS BAV19WS Datasheet (PDF)
File Size	342.19 KB
Manufacturer	PanJit Semiconductor
Description	200mW SURFACE MOUNT SWITCHING DIODES

BAV21WS Overview

BAV19WS~BAV21WS SURFACE MOUNT SWITCHING DIODES VOLTAGE 120-250 Volt POWER 200mWatt.

BAV21WS Key Features

Fast switching speed
Surface mount package ideally suited for automatic insertion
Electrically identical to Standard JEDEC
High conductance
Lead free in pliance with EU RoHS 2.0
Green molding pound as per IEC 61249 standard
Case: SOD-323, Plastic
Terminals: Solderable per MIL-STD-750, Method 2026
Approx. Weight: 0.00014 ounces, 0.0041 grams
