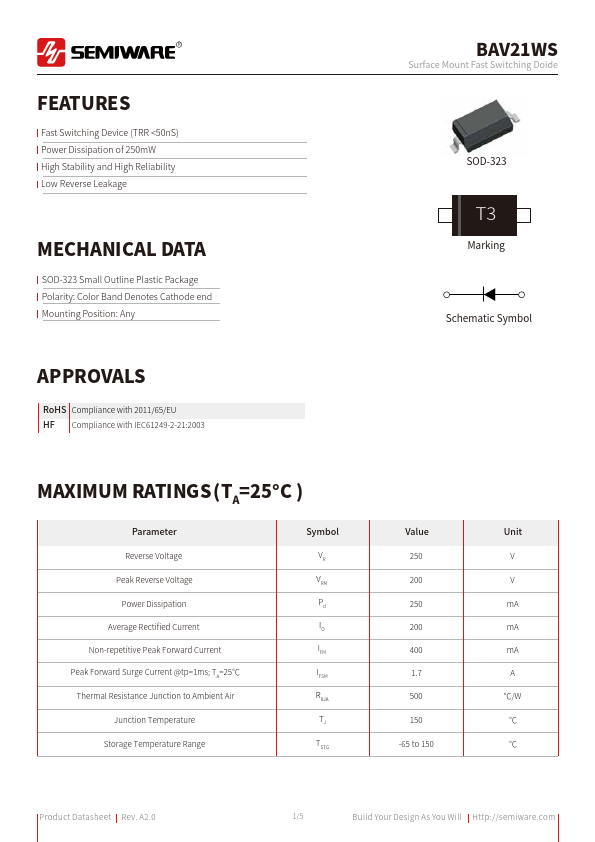

Features Fast Switching Device (TRR <50n S) Power Dissipation of 250m W High Stability and High Reliability Low Reverse Leakage MECHANICAL DATA SOD-323 Small Outline Plastic Package Polarity: Color Band Denotes Cathode end Mounting Position: Any APPROVALS Ro HS pliance with 2011/65/EU HF pliance with IEC61249-2-21:2003 MAXIMUM RATINGS (TA=25°C ) Parameter Reverse Voltage Peak Reverse Voltage Power Dissipation Average Rectified Current Non-repetitive Peak Forward Current Peak Forward Surge Current @tp=1ms; TA=25℃ Thermal Resistance Junction to Ambient Air Junction Temperature Storage Temperature Range Symbol VR VRM Pd IO IFM IFSM RθJA TJ TSTG Surface Mount Fast Switching Doide SOD-323 T3 Marking Schematic Symbol Value 250 200 250 200 400 1.7 500 150 -65 to 150 Unit V V m A m A m A A ℃/W ℃ ℃ Product Datasheet Rev. A2.0 1/5 Build Your Design As You Will Http://semiware. Surface Mount Fast Switching Doide ELECTRICAL CHARACTERISTICS(TA=25°C ) Parameter Breakdown Voltage Reverse Leakage Current Forward Voltage Capacitance Reverse Recovery Time Test Condition IR = 100μA VR = 200V IF = 100m A IF = 200m A VR =0V, f=1MHz IF =IR=30m A,Irr=3m A,RL=100Ω Symbol VBR IR Ctot trr Min....
