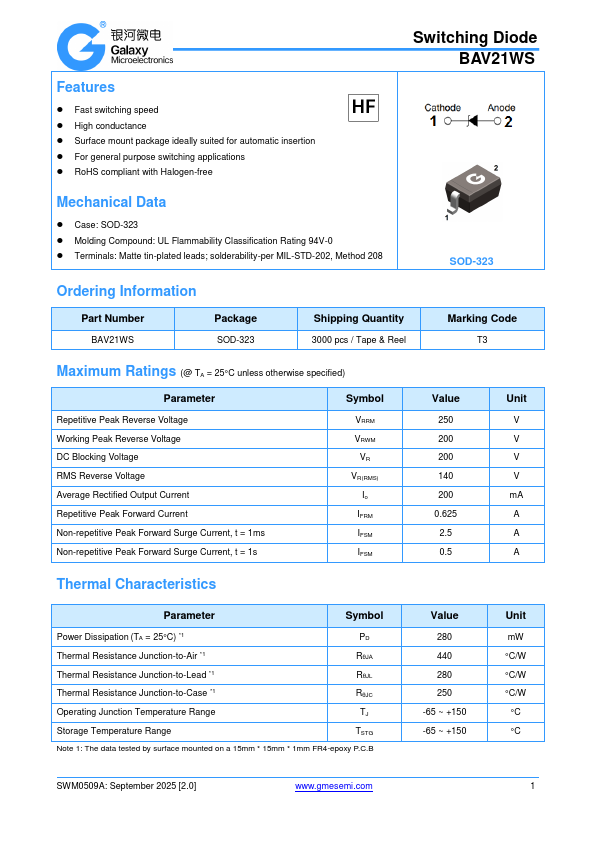

Features - Fast switching speed - High conductance - Surface mount package ideally suited for automatic insertion - For general purpose switching applications - Ro HS pliant with Halogen-free Switching Diode BAV21WS Mechanical Data - Case: SOD-323 - Molding pound: UL Flammability Classification Rating 94V-0 - Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 SOD-323 Ordering Information Part Number Package SOD-323 Shipping Quantity 3000 pcs / Tape & Reel Marking Code T3 Maximum Ratings (@ TA = 25°C unless otherwise specified) Parameter Repetitive Peak Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Output Current Repetitive Peak Forward Current Non-repetitive Peak Forward Surge Current, t = 1ms Non-repetitive Peak Forward Surge Current, t = 1s Symbol VRRM VRWM VR VR(RMS) Io IFRM IFSM IFSM Value 250 200 200 140 200 0.625 2.5...
