MBR640CT
MBR640CT is SCHOTTKY BARRIER RECTIFIERS manufactured by PanJit Semiconductor.

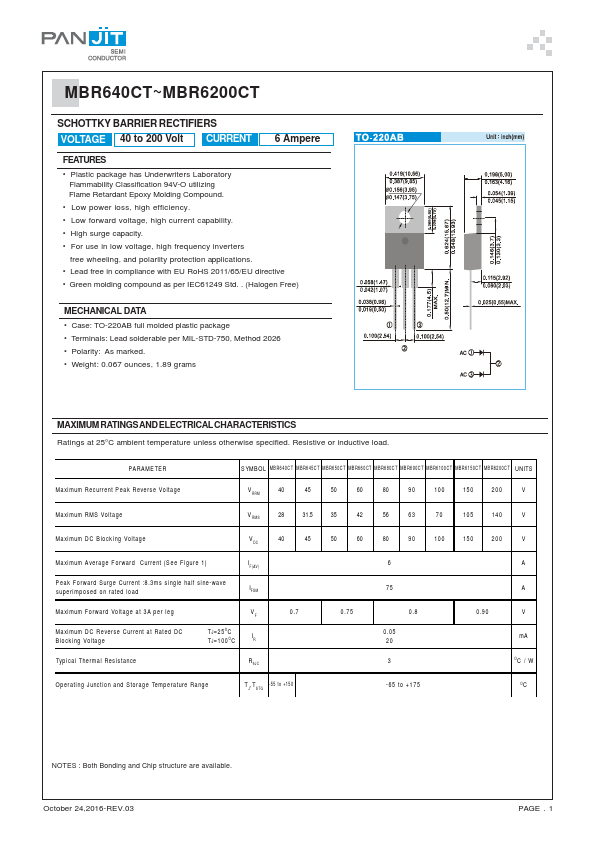

MBR640CT~MBR6200CT
SCHOTTKY BARRIER RECTIFIERS VOLTAGE 40 to 200 Volt CURRENT
6 Ampere
Features
- Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding pound.
- Low power loss, high efficiency.
- Low forward voltage, high current capability.
- High surge capacity.
- For use in low voltage, high frequency inverters free wheeling, and polarlity protection applications.
- Lead free in pliance with EU Ro HS 2011/65/EU directive
- Green molding pound as per IEC61249 Std. . (Halogen Free)
MECHANICAL DATA
- Case: TO-220AB full molded plastic package
- Terminals: Lead solderable per MIL-STD-750, Method 2026
- Polarity: As marked.
- Weight: 0.067 ounces, 1.89 grams
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. Resistive or inductive load.
PARAMETER
S YMB OL MBR640C T MBR645C T MBR650C T MBR660CT MBR680C T MBR690C T MBR6100C T MBR6150C T MBR6200C T UNITS
Maximum Recurrent Peak Reverse Voltage
V RRM
100 150 200
Maximum RMS Voltage
28 31.5 35
105 140
Maximum DC Blocking Voltage
V DC
100 150 200

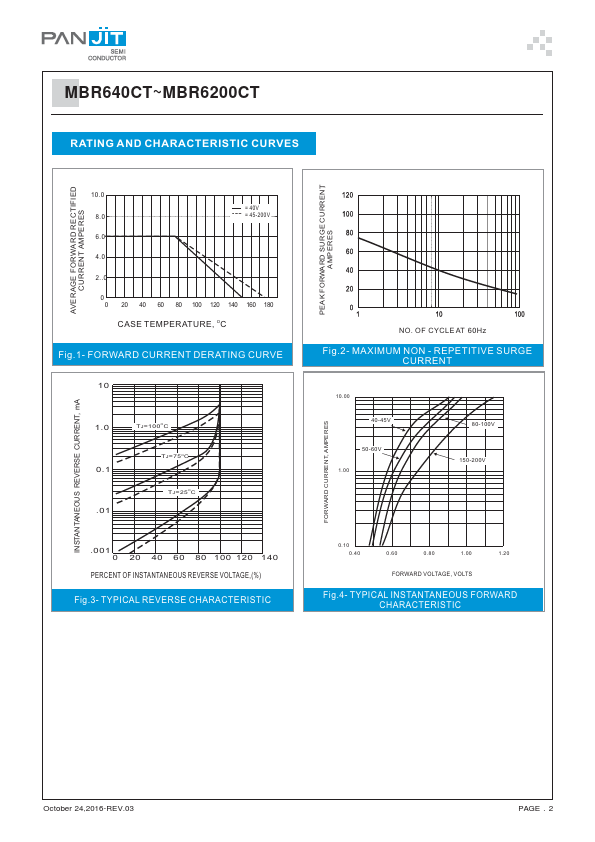

Maximum Average Forward Current (See Figure 1)
IF (AV...
