MMBT2222A Datasheet | PanJit Semiconductor

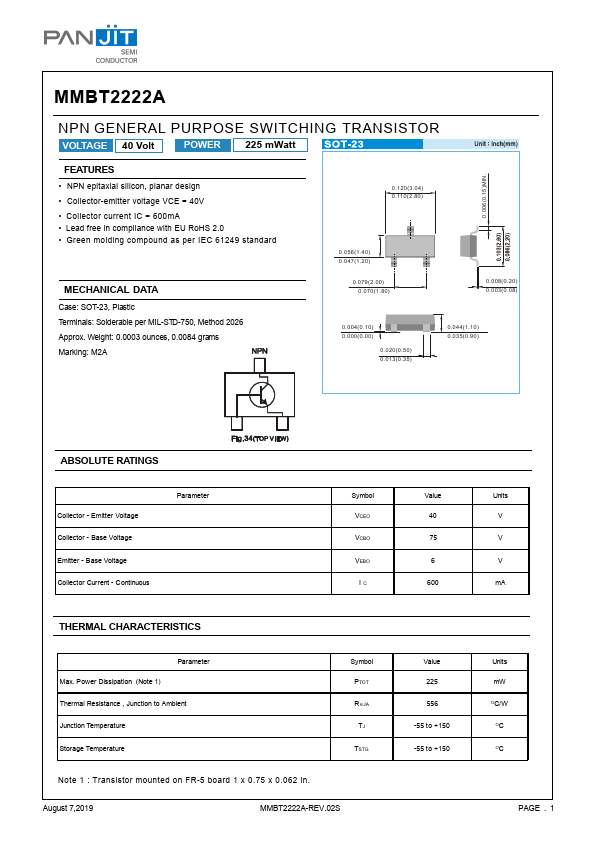

FEATURES - NPN epitaxial silicon, planar design - Collector-emitter voltage VCE = 40V - Collector current IC = 600m A - Lead free in pliance with EU Ro HS 2.0 - Green molding pound as per IEC 61249 standard 0.120(3.04) 0 . 11 0 ( 2 . 8 0 ) 0.056(1.40) 0.047(1.20) MECHANICAL DATA Case: SOT-23, Plastic Terminals: Solderable per MIL-STD-750, Method 2026 Approx. Weight: 0.0003 ounces, 0.0084 grams Marking: M2A 0.079(2.00) 0.070(1.80) 0.004(0.10) 0.000(0.00) 0.020(0.50) 0.013(0.35) 0.008(0.20) 0.003(0.08) 0.044(1.10) 0.035(0.90) ABSOLUTE RATINGS Collector - Emitter Voltage Collector - Base Voltage Emitter - Base Voltage Collector Current - Continuous Parameter Symbol VCEO VCBO VEBO IC THERMAL CHARACTERISTICS Max. Power Dissipation (Note 1) Parameter Thermal Resistance , Junction to Ambient Junction Temperature Storage Temperature Symbol PTOT R θJA TJ TSTG Note 1 : Transistor mounted on FR-5 board 1 x 0.75 x 0.062 in. August 7,2019 MMBT2222A-REV.02S Value 40 75 6 600 Value 225 556 -55 to +150 -55 to +150 Units V V V m A Units m W OC/W OC OC PAGE . 1 ELECTRICAL CHARACTERISTICS PARAMETER...
