MMBTA92-AU Datasheet | PanJit Semiconductor

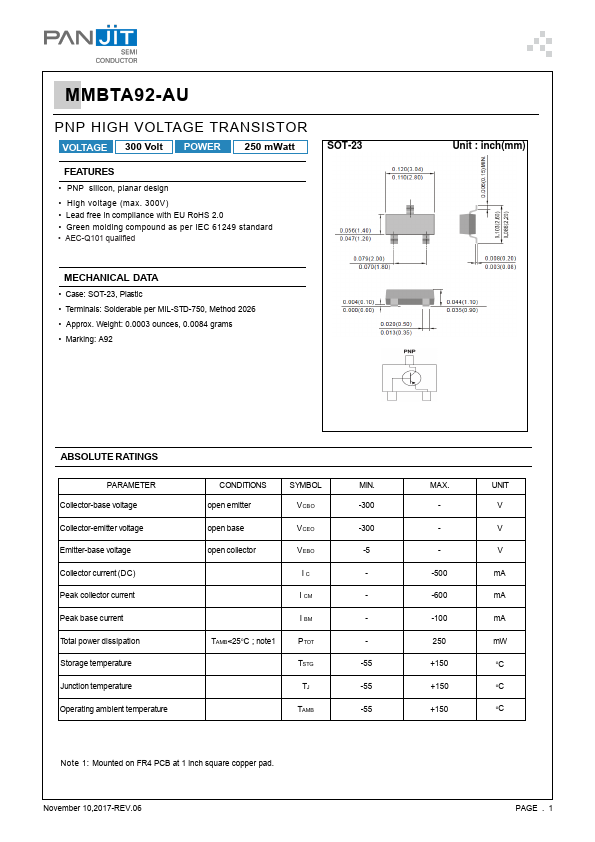

FEATURES - PNP silicon, planar design - High voltage (max. 300V) - Lead free in pliance with EU Ro HS 2.0 - Green molding pound as per IEC 61249 standard - AEC-Q101 qualified SOT-23 MECHANICAL DATA - Case: SOT-23, Plastic - Terminals: Solderable per MIL-STD-750, Method 2026 - Approx. Weight: 0.0003 ounces, 0.0084 grams - Marking: A92 Unit : inch(mm) ABSOLUTE RATINGS PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current (DC) Peak collector current Peak base current Total power dissipation Storage temperature Junction temperature Operating ambient temperature CONDITIONS open emitter SYMBOL VCBO open base VCEO open collector VEBO I CM I BM TAMB<25o C ; note1 PTOT TSTG TAMB MIN. -300 -300 -5 -55 -55 -55 Note 1: Mounted on FR4 PCB at 1 inch square copper pad. November 10,2017-REV.06 MAX. - -500 -600 -100 250 +150 +150 +150 UNIT V V V m A m A m A m W o C o C o C PAGE . 1 THERMAL CHARACTERISTICS PAR A ME T E R CONDITIONS Typical Thermal r esistance f rom junction t o ambient note 1 Note 1: Mounted on FR4 PCB at 1 inch square copper pad. C HA R AC T ER I S T I C S TAMB=25o C unless o ther wise s...
