DNA23E129GA
DNA23E129GA is DUAL DIGITS DISPLAY manufactured by PARA LIGHT.

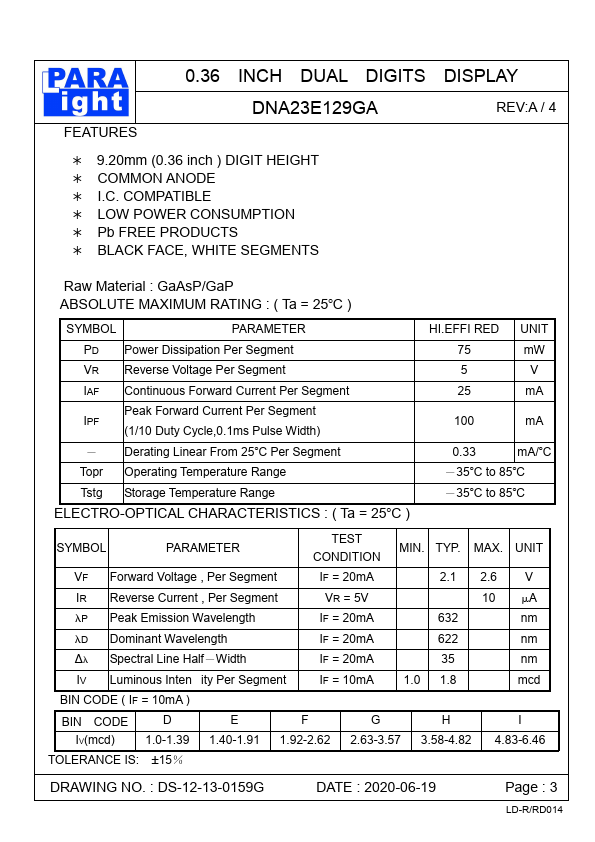

FEATURES
REV:A / 4
9.20mm (0.36 inch ) DIGIT HEIGHT MON ANODE I.C. PATIBLE LOW POWER CONSUMPTION Pb FREE PRODUCTS BLACK FACE, WHITE SEGMENTS
Raw Material : Ga As P/Ga P ABSOLUTE MAXIMUM RATING : ( Ta = 25°C )
SYMBOL
PARAMETER
PD Power Dissipation Per Segment
VR Reverse Voltage Per Segment
IAF Continuous Forward Current Per Segment
Peak Forward Current Per Segment IPF
(1/10 Duty Cycle,0.1ms Pulse Width)
－ Derating Linear From 25°C Per Segment
Topr Operating Temperature Range
Tstg Storage Temperature Range
ELECTRO-OPTICAL CHARACTERISTICS : ( Ta = 25°C )
HI.EFFI RED 75 5 25
UNIT m W
V m A
100 m A
0.33 m A/°C
－35°C to 85°C
－35°C to 85°C
SYMBOL
PARAMETER
TEST MIN. TYP. MAX. UNIT
CONDITION
VF Forward Voltage , Per Segment
IF = 20m A
2.1 2.6 V
IR Reverse Current , Per Segment
VR = 5V
10 µA
λP Peak Emission Wavelength
IF = 20m A
632 nm
λD Dominant Wavelength
IF = 20m A
622 nm
∆λ Spectral Line Half－Width
IF = 20m...
