DVA1AE010G - SINGLE DIGIT DISPLAY

Key Features

  •  25.20mm (1.00 inch ) DIGIT HEIGHT  COMMON ANODE  I. C.

📥 Download Datasheet

Datasheet Details

Part number DVA1AE010G
Manufacturer PARA LIGHT
File Size 350.32 KB
Description SINGLE DIGIT DISPLAY
Datasheet download datasheet DVA1AE010G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by PARA LIGHT

Part Number Description
DVA24E030G DUAL DIGITS DISPLAY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

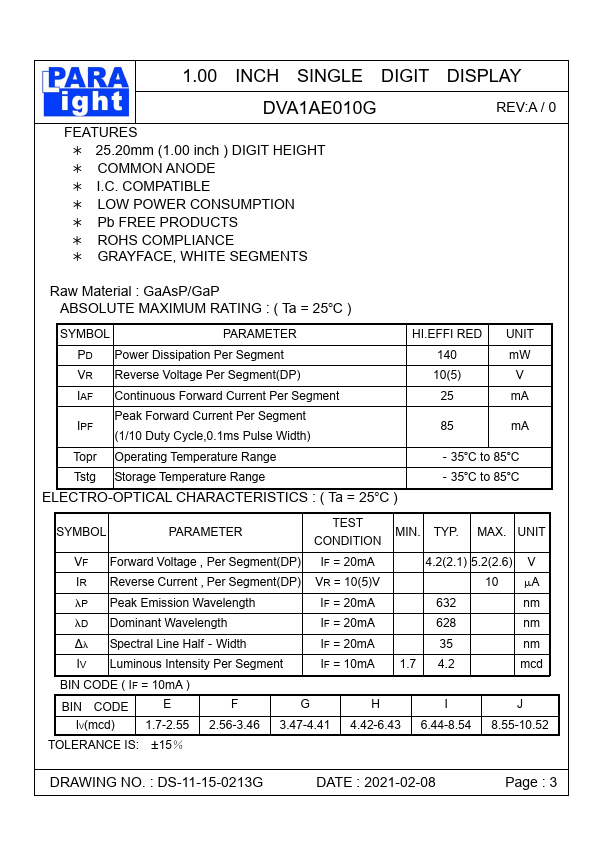

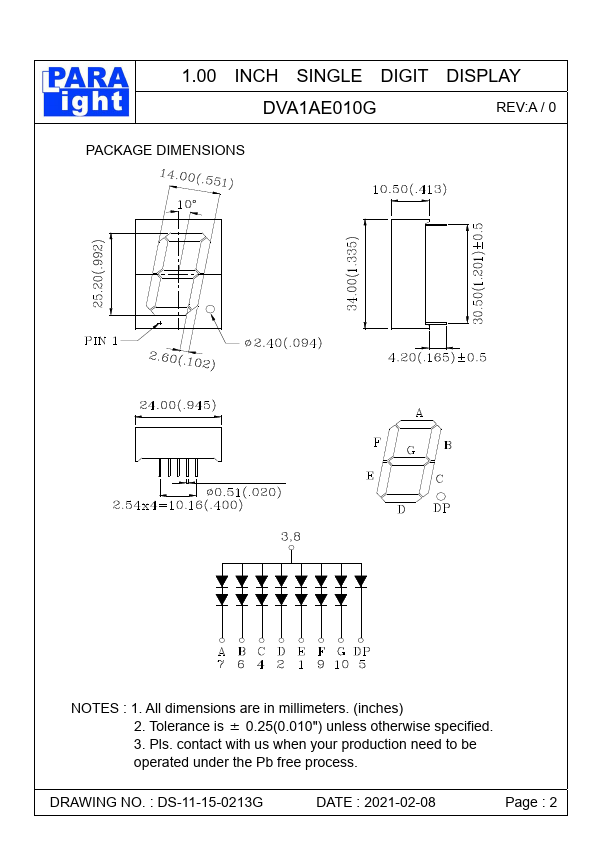

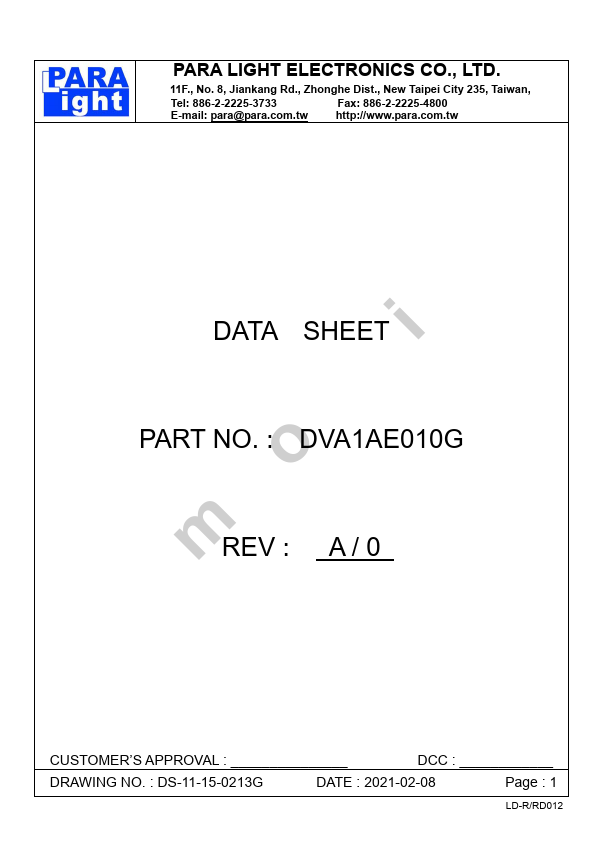

PARA LIGHT ELECTRONICS CO., LTD. 11F., No. 8, Jiankang Rd., Zhonghe Dist., New Taipei City 235, Taiwan, Tel: 886-2-2225-3733 E-mail: para@para.com.tw Fax: 886-2-2225-4800 http://www.para.com.tw de i DATA SHEET o PART NO. : DVA1AE010G mREV : A / 0 CUSTOMER’S APPROVAL : _______________ DCC : ____________ DRAWING NO. : DS-11-15-0213G DATE : 2021-02-08 Page : 1 LD-R/RD012 1.00 INCH SINGLE DIGIT DISPLAY DVA1AE010G REV:A / 0 PACKAGE DIMENSIONS NOTES : 1. All dimensions are in millimeters. (inches) 2. Tolerance is  0.25(0.010") unless otherwise specified. 3. Pls. contact with us when your production need to be operated under the Pb free process. DRAWING NO. : DS-11-15-0213G DATE : 2021-02-08 Page : 2 1.00 INCH SINGLE DIGIT DISPLAY DVA1AE010G FEATURES  25.20mm (1.
