PARA LIGHT ELECTRONICS CO., LTD.
11F., No. 8, Jiankang Rd., Zhonghe Dist., New Taipei City 235, Taiwan,
Tel: 886-2-2225-3733 E-mail: para@para.com.tw
Fax: 886-2-2225-4800 http://www.para.com.tw
de i

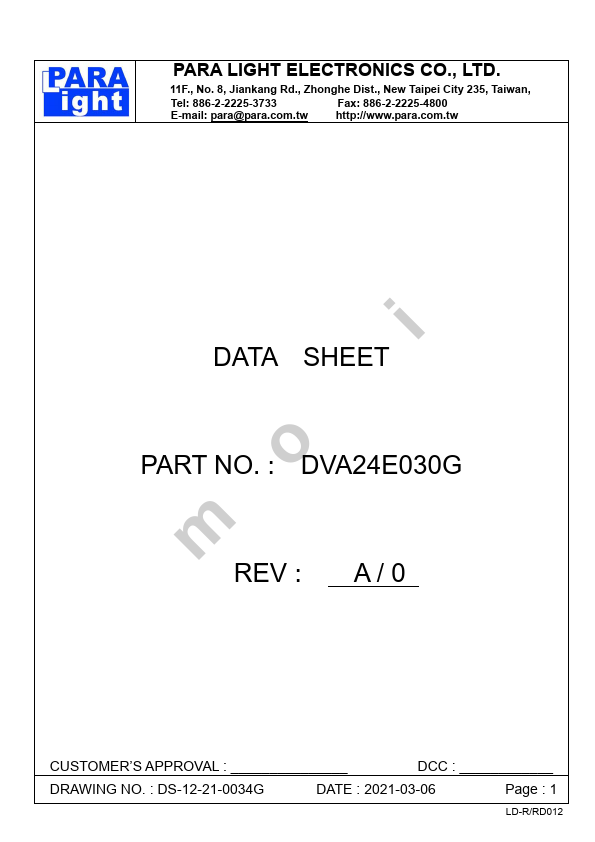

DATA SHEET
o PART NO. : DVA24E030G m
REV : A / 0
CUSTOMER’S APPROVAL : _______________
DCC : ____________
DRAWING NO. : DS-12-21-0034G
DATE : 2021-03-06
Page : 1
LD-R/RD012
0.4 INCH DUAL DIGITS DISPLAY
DVA24E030G
REV: A / 0

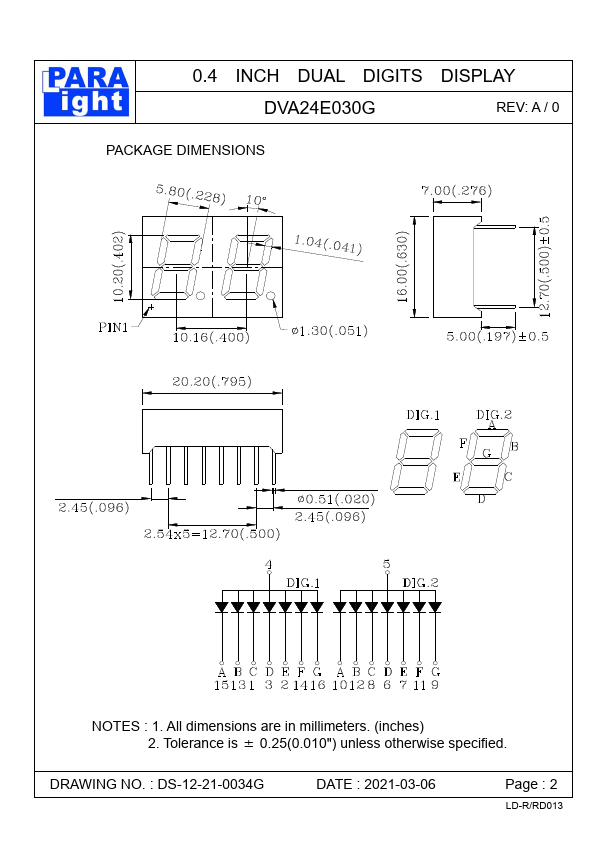

PACKAGE DIMENSIONS
NOTES : 1. All dimensions are in millimeters. (inches) 2. Tolerance is 0.25(0.010") unless otherwise specified.
DRAWING NO. : DS-12-21-0034G
DATE : 2021-03-06
Page : 2
LD-R/RD013

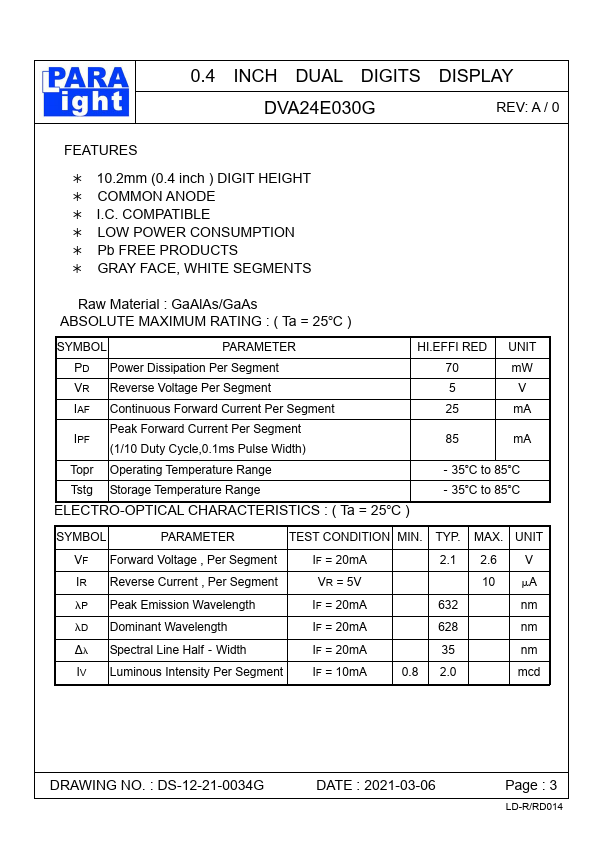

0.4 INCH DUAL DIGITS DISPLAY
DVA24E030G
REV: A / 0
FEATURES
10.2mm (0.4 inch ) DIGIT HEIGHT COMMON ANODE I.C.
