L-T69FRGBCT-U1
Features
Top view PLCC6, Wide view angle, lighting color Red & Green & Blue. EIA STD package, packing in 12mm tape on 7" diameter reels (ANSI/EIA-481-B-2001). patible with automatic Pick & Place equipment. patible with IR Reflow soldering and TTW soldering. Pb free product and acceptable lead-free process! Meet Ro HS Green Product.
Application
Backlighting (Switches, keys, displays, illuminated advertising) Emergency lighting / Signal and symbol luminaries. Decorative lighting.

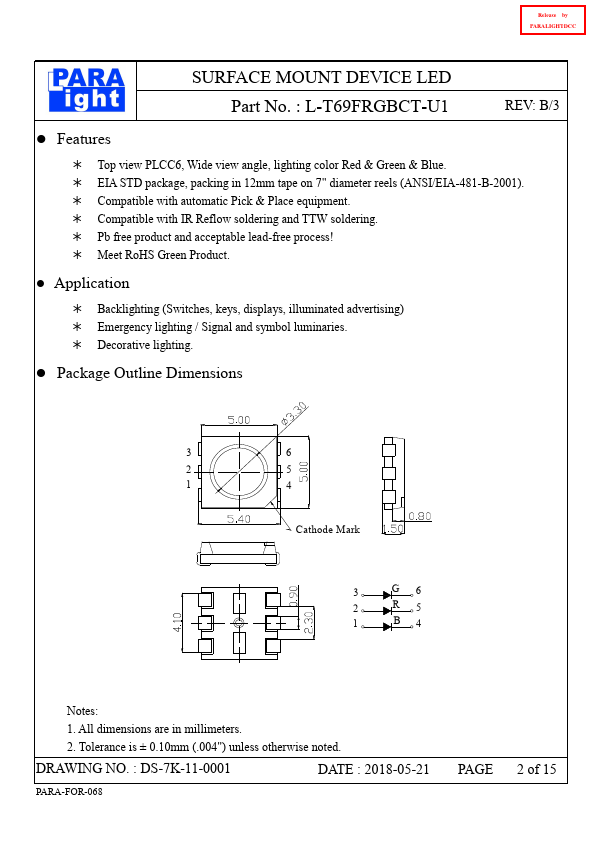

Package Outline Dimensions
Cathode Mark
G6
R5
B4
Notes: 1. All dimensions are in millimeters. 2. Tolerance is ± 0.10mm (.004") unless otherwise noted.
DRAWING NO. : DS-7K-11-0001
DATE : 2018-05-21
PARA-FOR-068
PAGE 2 of 15
Release by PARALIGHTDCC
SURFACE MOUNT DEVICE LED Part No. : L-T69FRGBCT-U1
REV: B/3

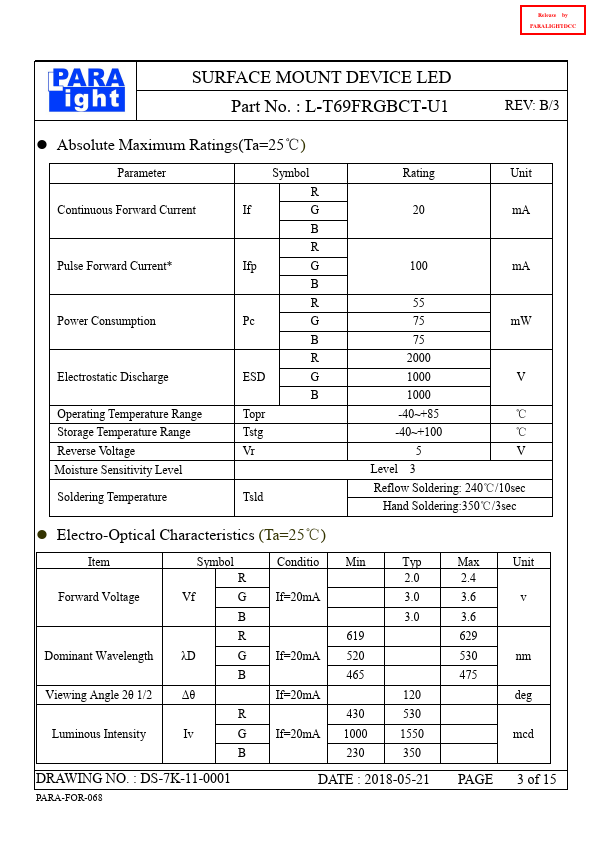

Absolute Maximum Ratings(Ta=25℃)
Parameter Continuous Forward Current
Pulse Forward Current-
Power Consumption
Electrostatic Discharge Operating Temperature Range...
