LQR3GD333G - DIA FLANGLESS LED LAMP

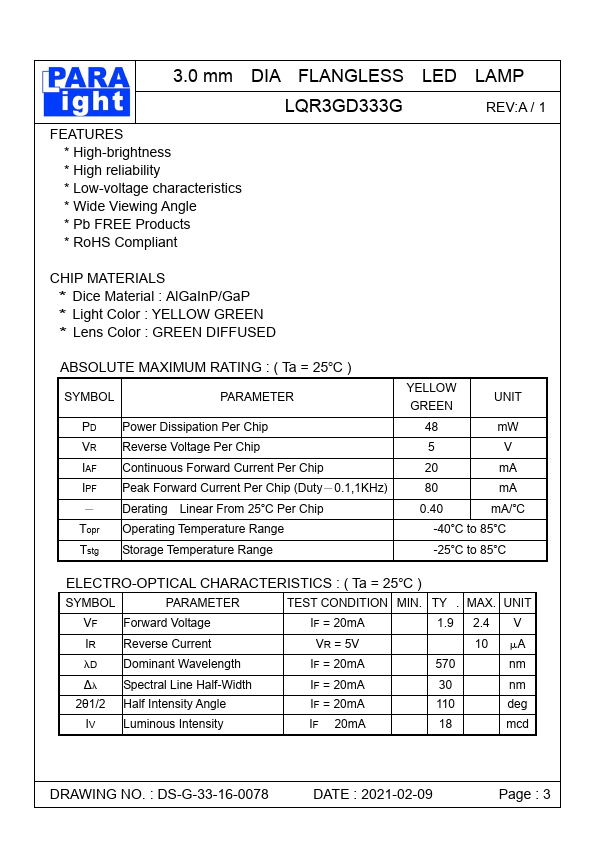

Key Features

  • High-brightness.
  • High reliability.
  • Low-voltage characteristics.
  • Wide Viewing Angle.
  • Pb FREE Products.
  • RoHS Compliant LED LAMP REV:A / 1 CHIP.

📥 Download Datasheet

Datasheet Details

Part number LQR3GD333G
Manufacturer PARA LIGHT
File Size 284.59 KB
Description DIA FLANGLESS LED LAMP
Datasheet download datasheet LQR3GD333G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by PARA LIGHT

Part Number Description
LQR5RGBW418G DIA LED LAMP

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

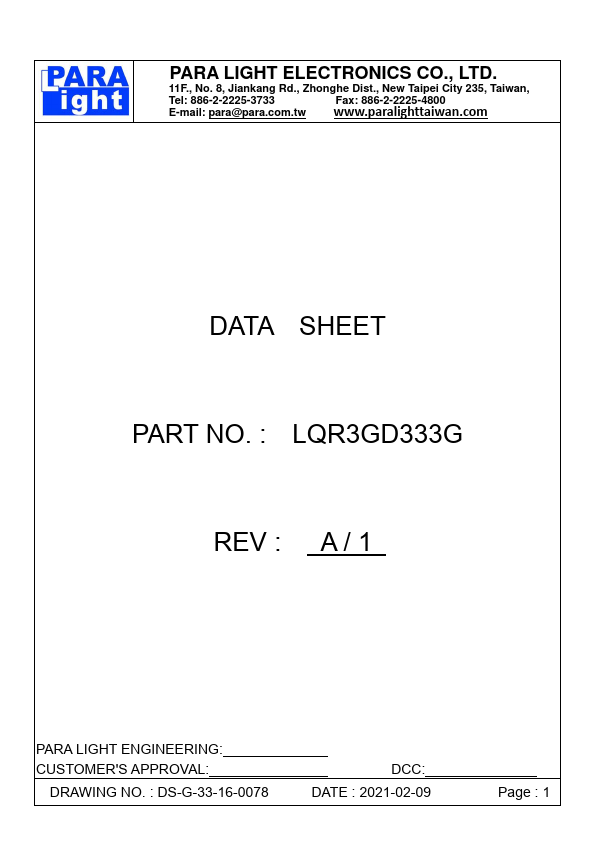

PARA LIGHT ELECTRONICS CO., LTD. 11F., No. 8, Jiankang Rd., Zhonghe Dist., New Taipei City 235, Taiwan, Tel: 886-2-2225-3733 E-mail: para@para.com.tw Fax: 886-2-2225-4800 www.paralighttaiwan.com DATA SHEET PART NO. : LQR3GD333G REV : A / 1 PARA LIGHT ENGINEERING: CUSTOMER'S APPROVAL: DRAWING NO. : DS-G-33-16-0078 DCC: DATE : 2021-02-09 Page : 1 3.0 mm DIA FLANGLESS LED LAMP LQR3GD333G REV:A / 1 PACKAGE DIMENSIONS ITEM RESIN MATERIALS Epoxy Resin Note: 1.All Dimensions are in millimeters. 2.Tolerance is ±0.25mm(0.010 ") Unless otherwise specified. 3.Protruded resin under flange is 1.5mm(0.059 ") max. DRAWING NO. : DS-G-33-16-0078 DATE : 2021-02-09 Page : 2 3.
