Datasheet Details
| Part number | LQR5RGBW418G |
|---|---|
| Manufacturer | PARA LIGHT |
| File Size | 394.61 KB |
| Description | DIA LED LAMP |
| Datasheet | LQR5RGBW418G-PARALIGHT.pdf |
|
|

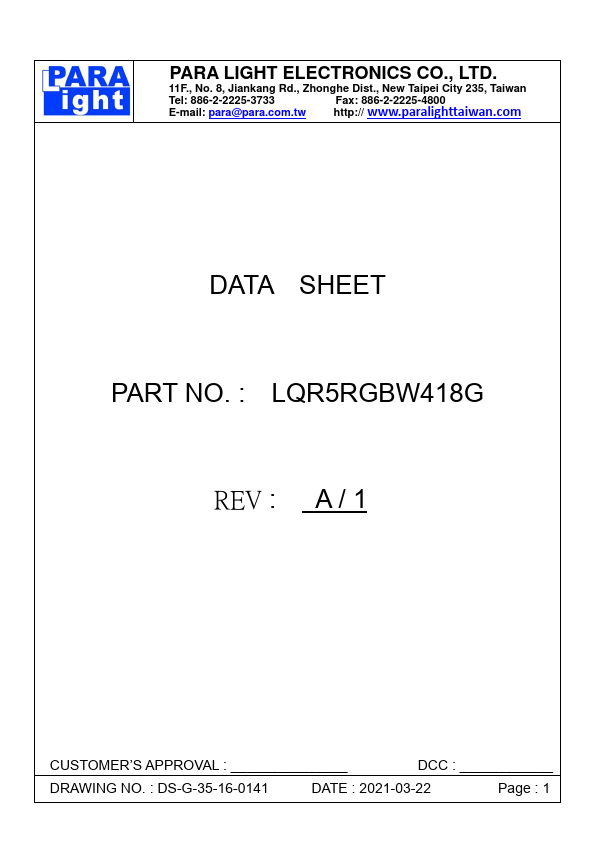

Overview: PARA LIGHT ELECTRONICS CO., LTD. 11F., No. 8, Jiankang Rd., Zhonghe Dist., New Taipei City 235, Taiwan Tel: 886-2-2225-3733 E-mail: para@para.com.tw Fax: 886-2-2225-4800 http:// www.paralighttaiwan.com DATA SHEET PART NO. : LQR5RGBW418G REV : A / 1 CUSTOMER’S APPROVAL : _______________ DCC : ____________ DRAWING NO. : DS-G-35-16-0141 DATE : 2021-03-22 Page : 1 5.0 mm DIA LED LAMP LQR5RGBW418G PACKAGE DIMENSIONS ITEM RESIN REV:A / 1 MATERIALS Epoxy Resin Note: 1.All Dimensions are in millimeters. 2.Tolerance is ±0.25mm(0.010 ") Unless otherwise specified. 3.Protruded resin under flange is 1.5mm(0.059 ") max. 4.Lead spacing is measured where the leads emerge from the package. 5.Specification are subject to change without notice 6.highlight ≤2000V the led can withstand the max static level when assembling or operation(HBM). 7.The lamps have sharp and hard points that may injure human eyes or fingers etc., so please pay enough care in the handling. DRAWING NO. : DS-G-35-16-0141 DATE : 2021-03-22 Page : 2 5.
| Part number | LQR5RGBW418G |
|---|---|
| Manufacturer | PARA LIGHT |
| File Size | 394.61 KB |
| Description | DIA LED LAMP |
| Datasheet | LQR5RGBW418G-PARALIGHT.pdf |
|
|
|

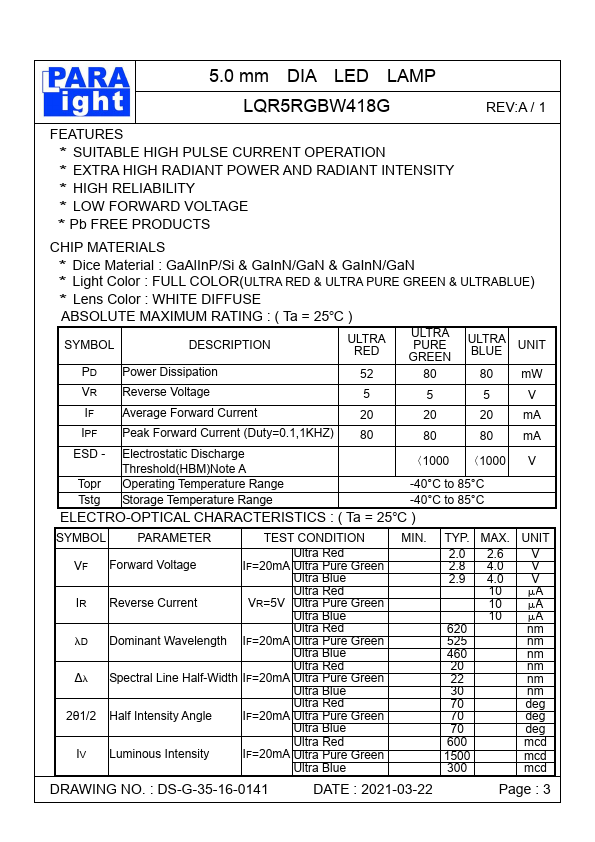

ULTRA RED PD Power Dissipation 52 ULTRA PURE GREEN 80 ULTRA BLUE UNIT 80 mW VR Reverse Voltage 5 5 5 V IF Average Forward Current 20 20 20 mA IPF Peak Forward Current (Duty=0.1,1KHZ) 80 80 80 mA ESD - Electrostatic Discharge Threshold(HBM)Note A 〈1000 〈1000 V Topr Operating Temperature Range -40°C to 85°C Tstg Storage Temperature Range -40°C to 85°C ELECTRO-OPTICAL CHARACTERISTICS : ( Ta = 25C ) SYMBOL PARAMETER TEST CONDITION VF IR D Δ 2θ1/2 Ultra Red Forward Voltage IF=20mA Ultra Pure Gree
