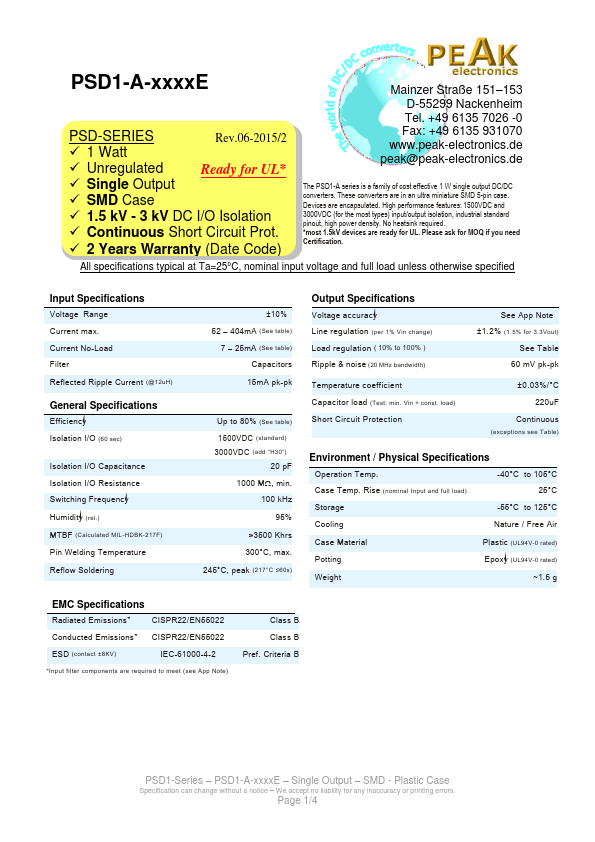

PSD1-A-xxxxE
PSD-SERIES
Rev.06-2015/2
1 Watt
Unregulated
Ready for UL*
Single Output
SMD Case
1.5 kV - 3 kV DC I/O Isolation
Continuous Short Circuit Prot.
2 Years Warranty (Date Code)
Mainzer Straße 151–153 D-55299 Nackenheim Tel. +49 6135 7026 -0 Fax: +49 6135 931070
www.peak-electronics.de peak@peak-electronics.de
The PSD1-A series is a family of cost effective 1 W single output DC/DC converters. These converters are in an ultra miniature SMD 5-pin case. Devices are encapsulated. High performance features: 1500VDC and 3000VDC (for the most types) input/output isolation, industrial standard pinout, high power density. No heatsink required. *most 1.5kV devices are ready for UL. Please ask for MOQ if you need Certification.
PSD1-A-0505E Datasheet
