PSD1-A-0509E Datasheet 1W single output DC/DC converters

Manufacturer: PEAK electronics

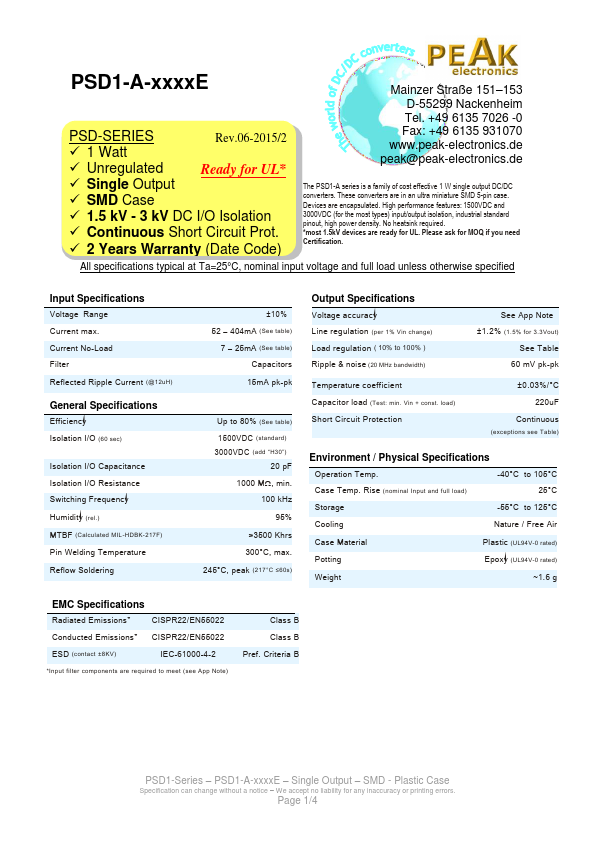

Overview: PSD1-A-xxxxE PSD-SERIES Rev.06-2015/2  1 Watt  Unregulated Ready for UL*  Single Output  SMD Case  1.5 kV - 3 kV DC I/O Isolation  Continuous Short Circuit Prot.  2 Years Warranty (Date Code) Mainzer Straße 151–153 D-55299 Nackenheim Tel. +49 6135 7026 -0 Fax: +49 6135 931070 www.peak-electronics.de peak@peak-electronics.de The PSD1-A series is a family of cost effective 1 W single output DC/DC converters. These converters are in an ultra miniature SMD 5-pin case. Devices are encapsulated.

Download the PSD1-A-0509E datasheet PDF. This datasheet also includes the PSD1-A-3R33R3E variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

PSD1-A-0509E 1w single output dc/dc converters by PEAK electronics - Datasheet Preview

Datasheet Details

Part number	PSD1-A-0509E
Manufacturer	PEAK electronics
File Size	358.07 KB
Description	1W single output DC/DC converters
Download	PSD1-A-0509E Download (PDF)

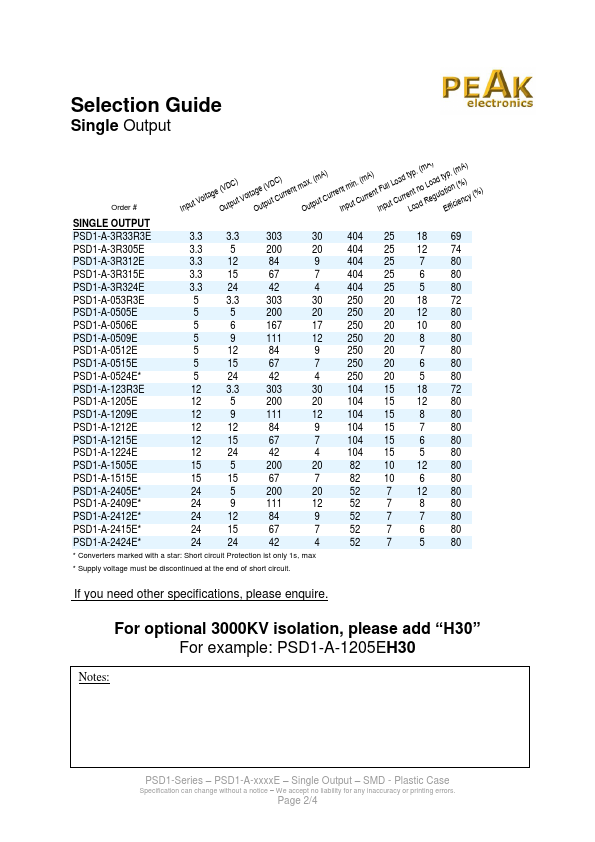

Key Features

1500VDC and 3000VDC (for the most types) input/output isolation, industrial standard pinout, high power density. No heatsink required.

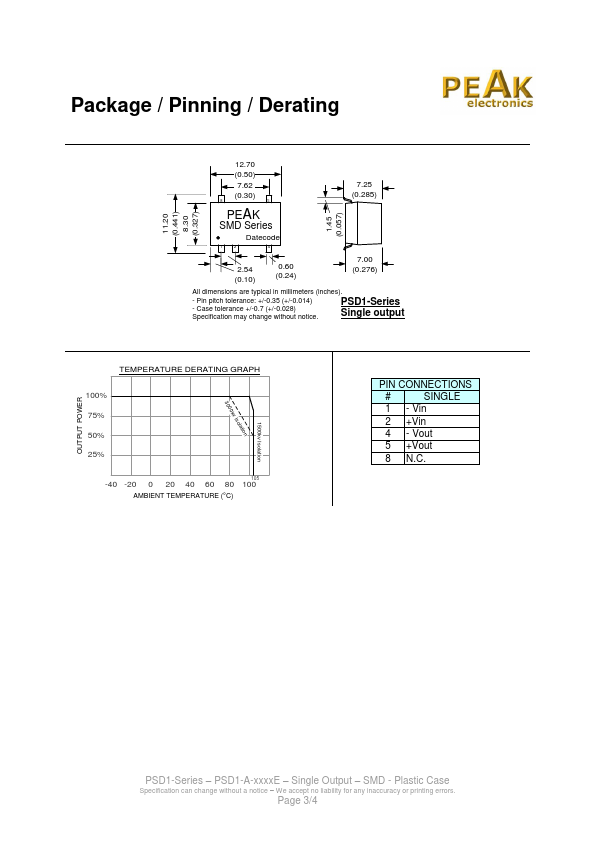

most 1.5kV devices are ready for UL. Please ask for MOQ if you need Certification. All specifications typical at Ta=25°C, nominal input voltage and full load unless otherwise specified Input Specifications Voltage Range Current max. Current No-Load Filter Reflected Ripple Current (@12uH) General Specifications Efficiency Isolation I/O (60 sec) Isolation I.
