BAT54WS-AU Datasheet PDF - Pan Jit International SURFACE MOUNT SCHOTTKY BARRIER Specs

BAT54WS-AU - SURFACE MOUNT SCHOTTKY BARRIER

Datasheet Summary

Features

Low turn-on voltage.
Fast switching.
PN Junction Guard Ring for Transient and ESD Protection.
Acqire quality system certificate : TS16949.
AEC-Q101 qualified.
Lead free in comply with EU RoHS 2011/65/EU directives.
Green molding compound as per IEC61249 Std. . (Halogen Free).

Datasheet Details

Part number	BAT54WS-AU
Manufacturer	Pan Jit International
File Size	65.27 KB
Description	SURFACE MOUNT SCHOTTKY BARRIER
Datasheet	BAT54WS-AU Datasheet

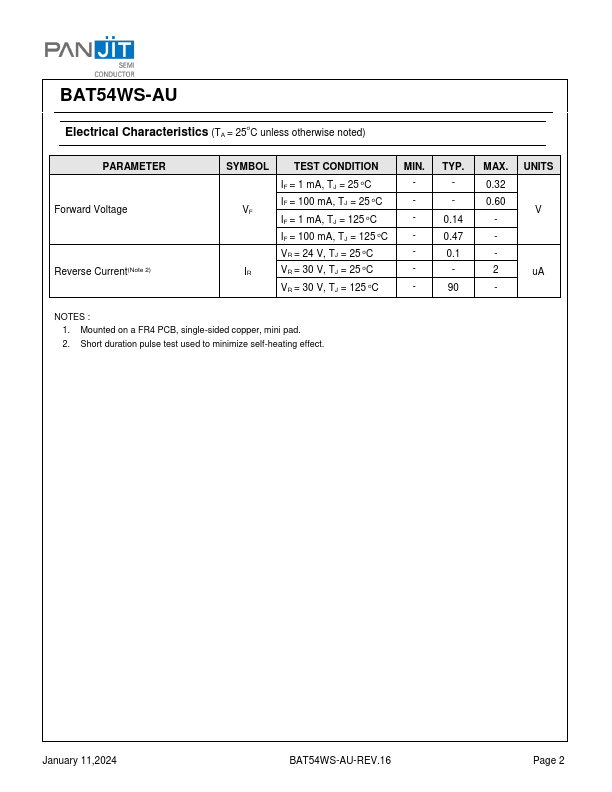

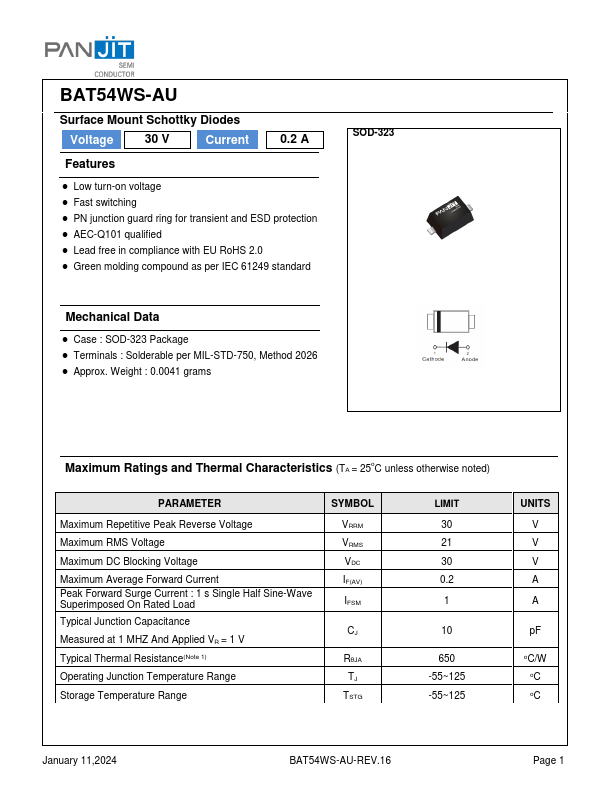

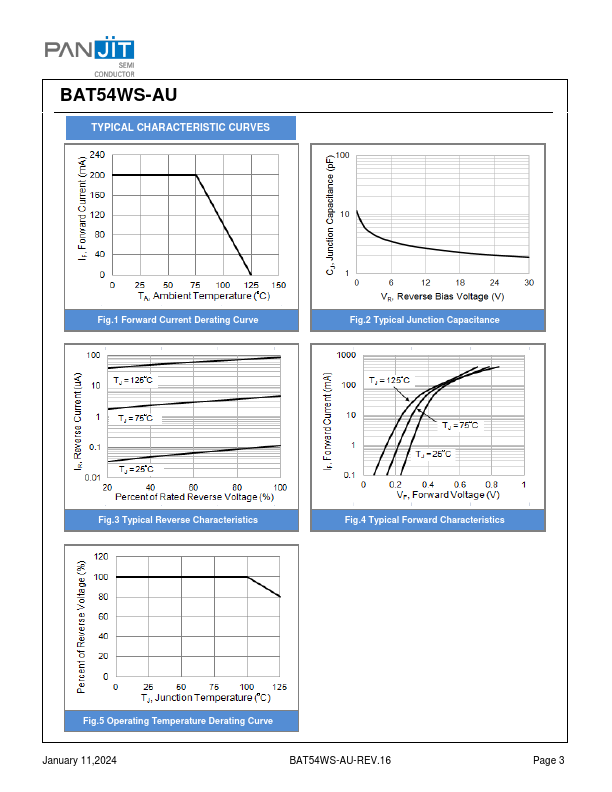

Additional preview pages of the BAT54WS-AU datasheet.

📁 Similar Datasheet

BAT54WS-G - Small Signal Schottky Diode (Vishay)

BAT54WS-V - Small Signal Schottky Diodes (Vishay Siliconix)

BAT54WS - SURFACE MOUNT SCHOTTKY BARRIER DIODE (LITE-ON)

BAT54WS - Schottky Barrier Diode (MCC)

BAT54WS - Schottky Diode (Vishay)

BAT54WS - SCHOTTKY BARRIER DIODES (UTC)

BAT54WS - SCHOTTKY BARRIER DIODE (SMC Diode)

BAT54WS - SURFACE MOUNT SCHOTTKY BARRIER DIODE (DIODES)

BAT54WS - SURFACE MOUNT SCHOTTKY BARRIER (PANJIT)

BAT54WS - SCHOTTKY BARRIER RECTIFIERS (EVVOSEMI)

Full PDF Text Transcription

Click to expand full text

BAT54WS-AU SURFACE MOUNT SCHOTTKY BARRIER VOLTAGE 30 Volts CURRENT 0.2 Ampers FEATURES • Low turn-on voltage • Fast switching • PN Junction Guard Ring for Transient and ESD Protection. • Acqire quality system certificate : TS16949 • AEC-Q101 qualified • Lead free in comply with EU RoHS 2011/65/EU directives • Green molding compound as per IEC61249 Std. . (Halogen Free) MECHANICAL DATA • Case: SOD-323, Plastic • Terminals: Solderable per MIL-STD-750, Method 2026 • Approx. Weight: 0.0001 ounces, 0.0041 grams • Polarity: Color band denotes cathode end 0.054(1.35) 0.045(1.15) 0.078(1.95) 0.068(1.75) 0.014(0.35) 0.009(0.25) 0.036(0.90) 0.027(0.70) 0.107(2.7) 0.090(2.3) 0.006(0.15) 0.002(0.05) 0.012(0.30)MIN.

Published: Feb 3, 2016 |
