BAT54W - Small Signal Schottky Diode

Vishay

Key Features

These diodes feature very low turn-on voltage and fast switching.
These devices are protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges.
AEC-Q101 qualified available.
Base P/N-E3 - RoHS-compliant, commercial grade.
Base P/N-HE3 - RoHS-compliant, AEC-Q101 qualified.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912         PARTS TABLE PART BAT54W.

BAT54W small signal schottky diode by Vishay - Datasheet Preview

Datasheet Details

Part number	BAT54W
Manufacturer	Vishay
File Size	91.29 KB
Description	Small Signal Schottky Diode
Datasheet	BAT54W Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
BAT54W	SMALL SIGNAL SCHOTTKY DIODE	STMicroelectronics
BAT54W	Schottky barrier diodes	NXP
BAT54W	Schottky Barrier Diodes	ON Semiconductor
BAT54W	Silicon Schottky Diodes	Infineon
BAT54W	SURFACE MOUNT SCHOTTKY BARRIER DIODE	DIODES

Other Datasheets by Vishay

Part Number	Description
BAT54W-G	Small Signal Schottky Diode
BAT54W-V	Small Signal Schottky Diode
BAT54WS	Schottky Diode
BAT54WS-G	Small Signal Schottky Diode
BAT54	Small Signal Schottky Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

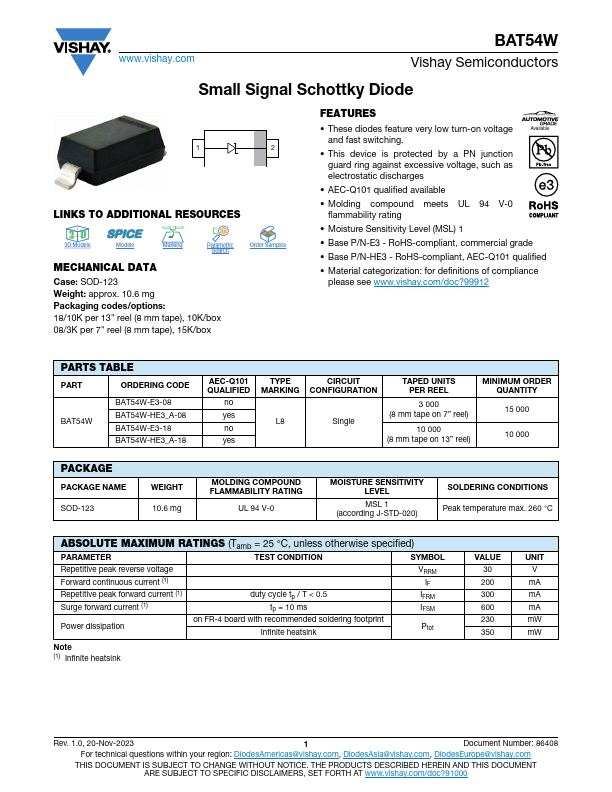

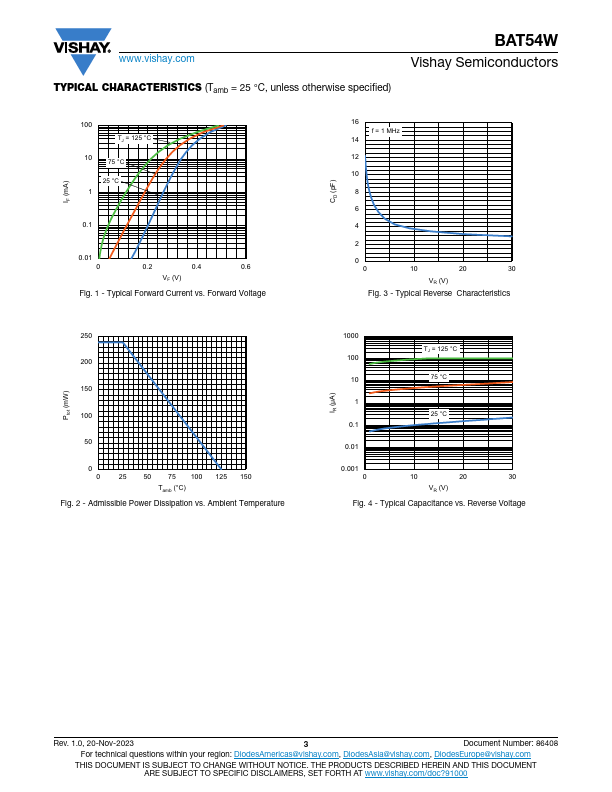

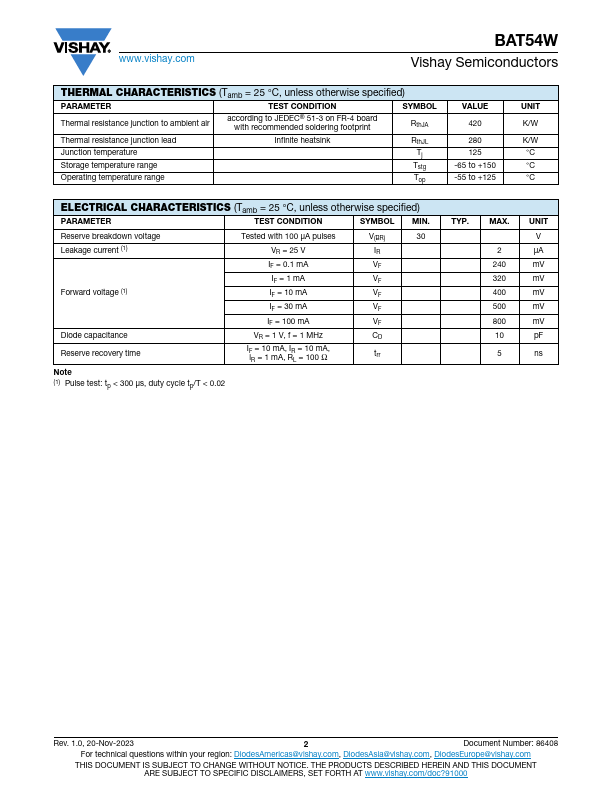

www.vishay.com BAT54W Vishay Semiconductors Small Signal Schottky Diode DESIGN SUPPORT TOOLS click logo to get started Models Available MECHANICAL DATA Case: SOD-123 Weight: approx. 10.3 mg Packaging codes/options: 18/10K per 13" reel (8 mm tape), 10K/box 08/3K per 7" reel (8 mm tape), 15K/box FEATURES • These diodes feature very low turn-on voltage and fast switching • These devices are protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges • AEC-Q101 qualified available • Base P/N-E3 - RoHS-compliant, commercial grade • Base P/N-HE3 - RoHS-compliant, AEC-Q101 qualified • Material categorization: for definitions of compliance please see www.vishay.
