MMBD7000 - SURFACE MOUNT SWITCHING DIODE

Key Features

  • Very fast reverse recovery (t rr < 2.0 ns typical).
  • Isolated, series-connected diode pair www. DataSheet4U. com.
  • Surface mount package ideally suited for automatic insertion.
  • In compliance with EU RoHS 2002/95/EC directives 100 Volts POWER 225 mWatts.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MMBD7000 Surface mount switching diode GME
MMBD7000 Small Signal Switching Diode Vishay
MMBD7000 Switching Diodes Kexin
MMBD7000 SMD Switching Diode Formosa MS
MMBD7000 350mW Dual Series Switching Diode MCC

Other Datasheets by PanJit Semiconductor

Part Number Description
MMBD701 SURFACE MOUNT SCHOTTKY DIODE
MMBD101 SURFACE MOUNT HIGH FREQUENCY SCHOTTKY DIODE
MMBD3004A HIGH VOLTAGE SURFACE MOUNT SWITCHING DIODE
MMBD3004BRM SURFACE MOUNT HIGH VOLTAGE SWITCHING DIODE ARRAY
MMBD3004C HIGH VOLTAGE SURFACE MOUNT SWITCHING DIODE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

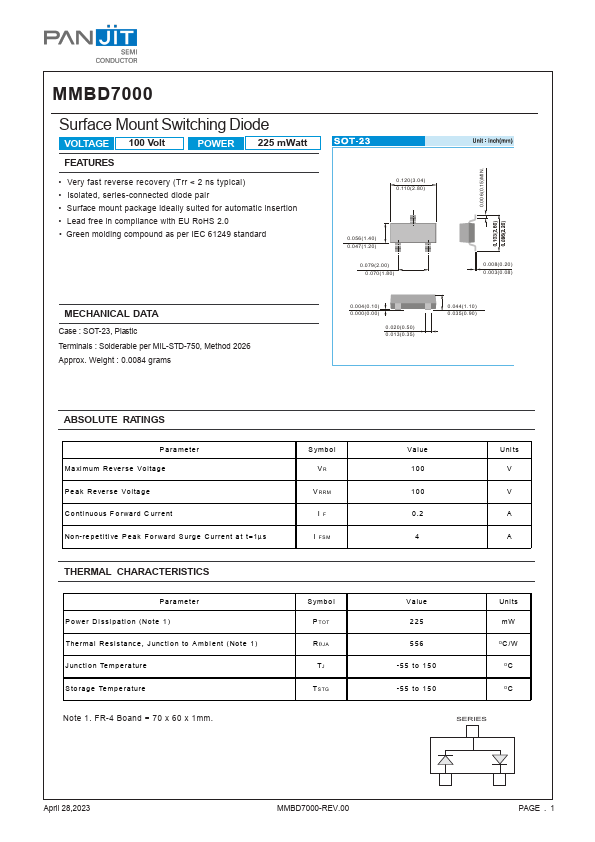

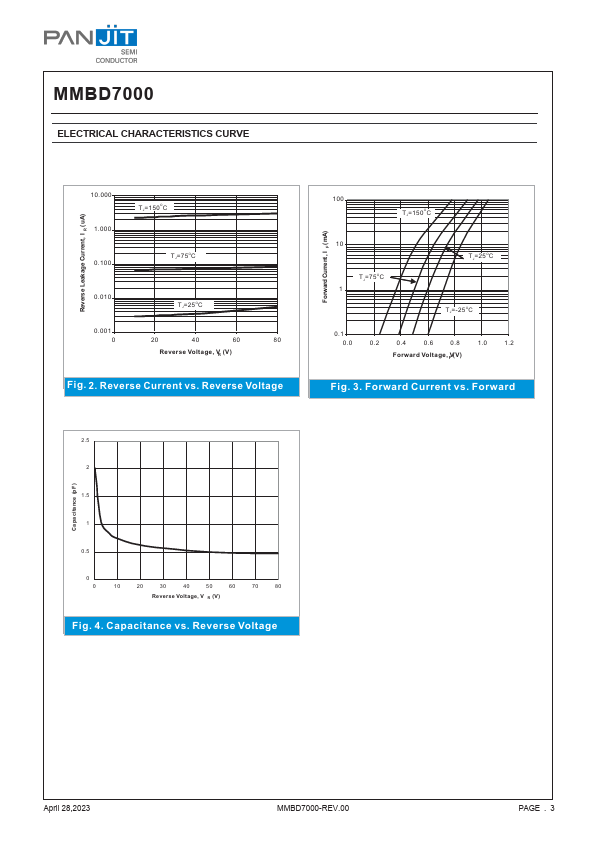

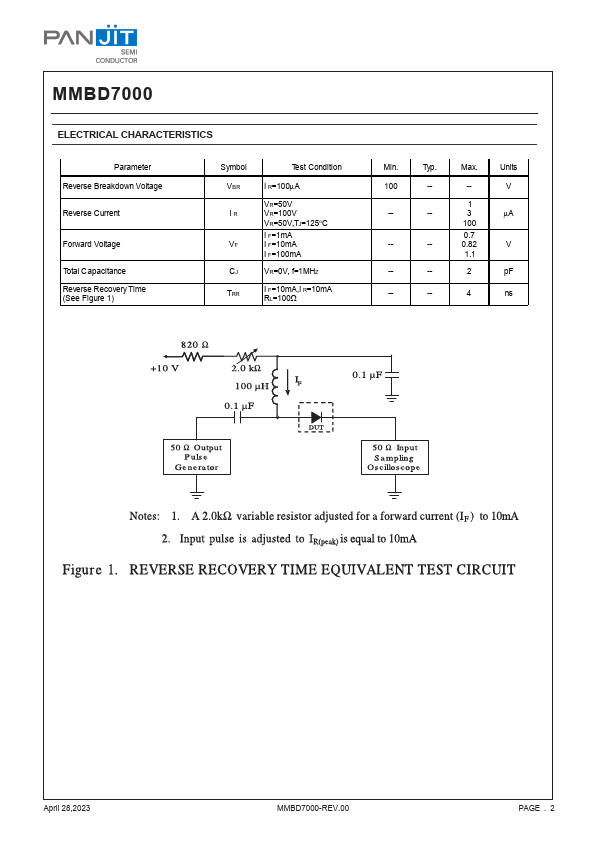

MMBD7000 SURFACE MOUNT SWITCHING DIODE VOLTAGE FEATURES • Very fast reverse recovery (t rr < 2.0 ns typical) • Isolated, series-connected diode pair www.DataSheet4U.com • Surface mount package ideally suited for automatic insertion • In compliance with EU RoHS 2002/95/EC directives 100 Volts POWER 225 mWatts MECHANICAL DATA • Case: SOT-23, Plastic • Terminals: Solderable per MIL-STD-750, Method 2026 • Approx. Weight: 0.008 gram • Marking: T3 ABSOLUTE RATINGS PA RA M E TE R M a xi m um R e ve r s e V o l t a g e P e a k R e ve r s e V o l t a g e C o nt i nuo us F o r w a r d C ur r e nt N o n- r e p e t i t i ve P e a k F o r w a r d S ur g e C ur r e nt a t t = 1 . 0 µ s S ym b o l VR V RRM IF IF S M Va l ue 100 100 0 .2 2 .
