MMBTA92 - PNP HIGH VOLTAGE TRANSISTOR

Features

  • PNP silicon, planar design.
  • High voltage (max. 300V).
  • In compliance with EU RoHS 2002/95/EC directives.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MMBTA92 PNP Transistors Kexin
MMBTA92 HIGH VOLTAGE TRANSISTOR Motorola
MMBTA92 Surface mount High Voltage Transistors Diotec
MMBTA92 High Voltage PNP Transistor CITC
MMBTA92 Silicon PNP transistor BLUE ROCKET ELECTRONICS

Other Datasheets by PanJit Semiconductor

Part Number Description
MMBTA44 NPN HIGH VOLTAGE TRANSISTOR
MMBT2222ATB NPN GENERAL PURPOSE SWITCHING TRANSISTOR
MMBT2222AW NPN GENERAL PURPOSE SWITCHING TRANSISTOR
MMBT2369A NPN GENERAL PURPOSE SWITCHING TRANSISTOR
MMBT2907A PNP Transistor

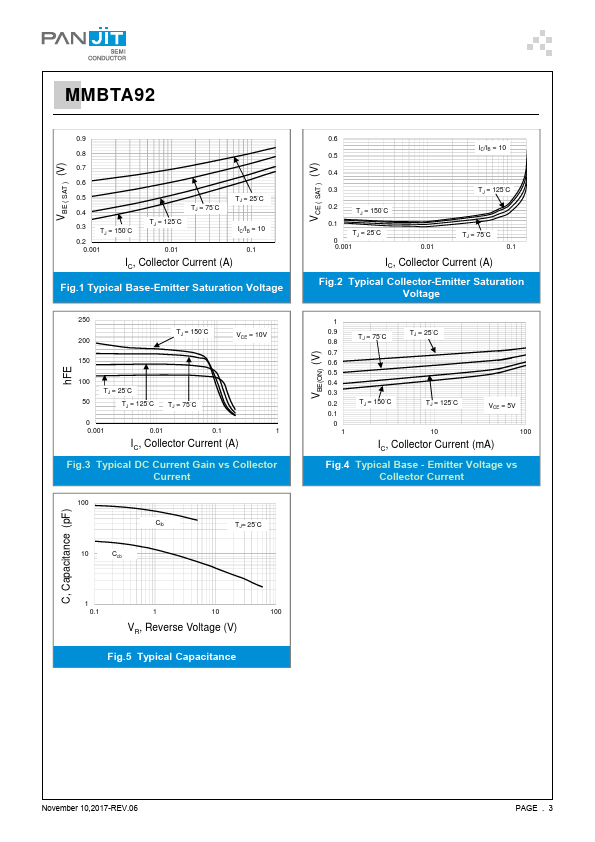

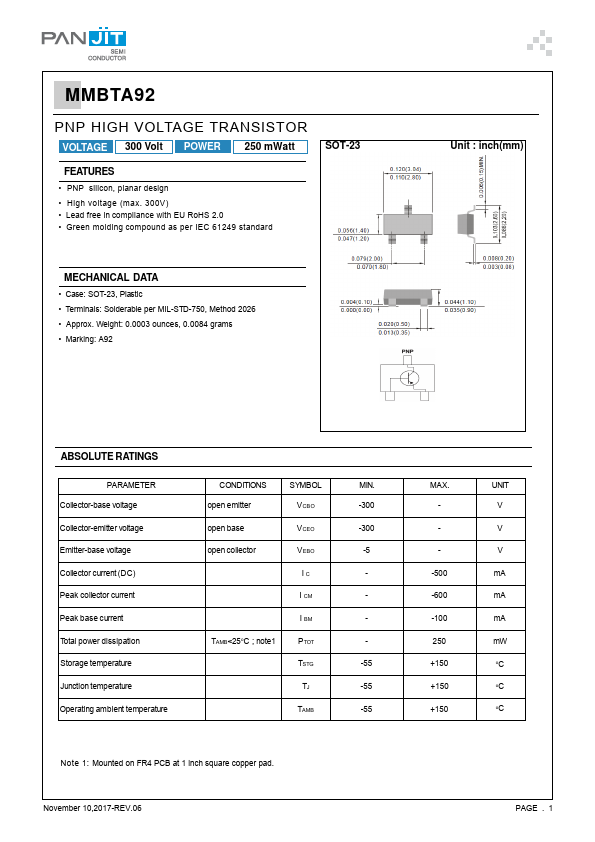

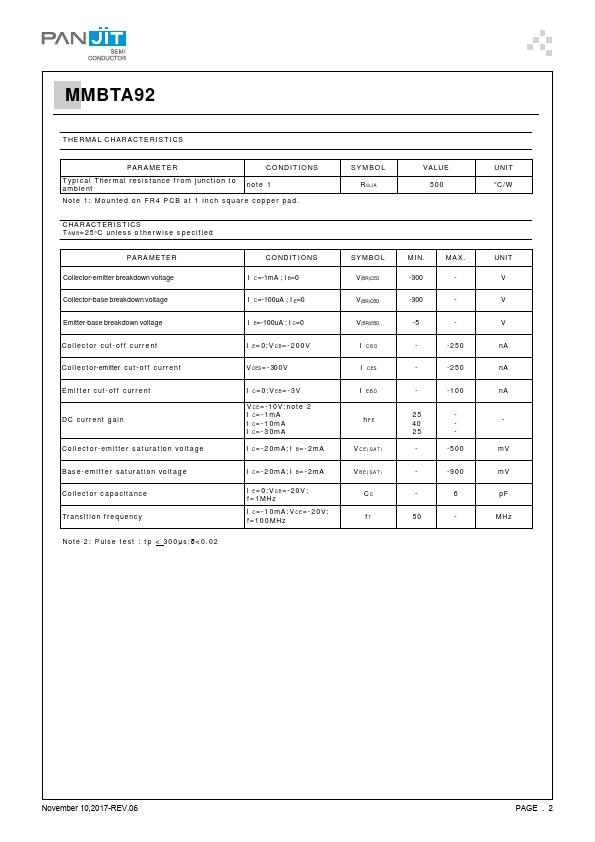

Full PDF Text Transcription

Click to expand full text
MMBTA92 PNP HIGH VOLTAGE TRANSISTOR VOLTAGE 300 Volts POWER 225 mWatts FEATURES • PNP silicon, planar design • High voltage (max. 300V) • In compliance with EU RoHS 2002/95/EC directives MECHANICAL DATA Case: SOT-23, Plastic Terminals: Solderable per MIL-STD-750, Method 2026 Approx. Weight: 0.008 gram Marking: A92 ABSOLUTE RATINGS PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current (DC) Peak collector current Peak base current Total power dissipation Storage temperature Junction temperature Operating ambient temperature CONDITIONS open emitter SYMBOL VCBO open base VCEO open collector VEBO IC I CM I BM TAMB<25oC ; note1 PTOT TSTG TJ TAMB MIN. - -65 - -65 Note 1: Transistor mounted on FR-4 board 70 x 60 x 1mm. REV.0.2-JUL.10.
