RB501V-40-AU - SURFACE MOUNT SCHOTTKY DIODES

Key Features

  • Extremely Fast Switching Speed.
  • Very Low VF : 0.32V (Typ) at IF = 10mA.
  • Surface mount package ideally suited for autmatic insertion.
  • Lead free in compliance with EU RoHS 2011/65/EU directive.
  • Green molding compound as per IEC61249 Std. . (Halogen Free).
  • Acqire quality system certificate : TS16949.
  • AEC-Q101 qualified.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
RB501V-40 SCHOTTKY BARRIER DIODE JCET
RB501V-40 Schottky barrier diode Rohm
RB501V-40 Schottky Barrier Diode GME
RB501V-40 SURFACE MOUNT SCHOTTKY BARRIER DIODE LITE-ON
RB501V-40 SURFACE MOUNT SCHOTTKY BARRIER DIODE WON-TOP

Other Datasheets by PanJit Semiconductor

Part Number Description
RB501V-40 SURFACE MOUNT SCHOTTKY DIODES
RB501V-40TW SURFACE MOUNT SCHOTTKY DIODES
RB500V-40 SURFACE MOUNT SCHOTTKY DIODES
RB520G-30 SCHOTTKY BARRIER DIODE
RB520S30 SURFACE MOUNT SCHOTTKY DIODE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

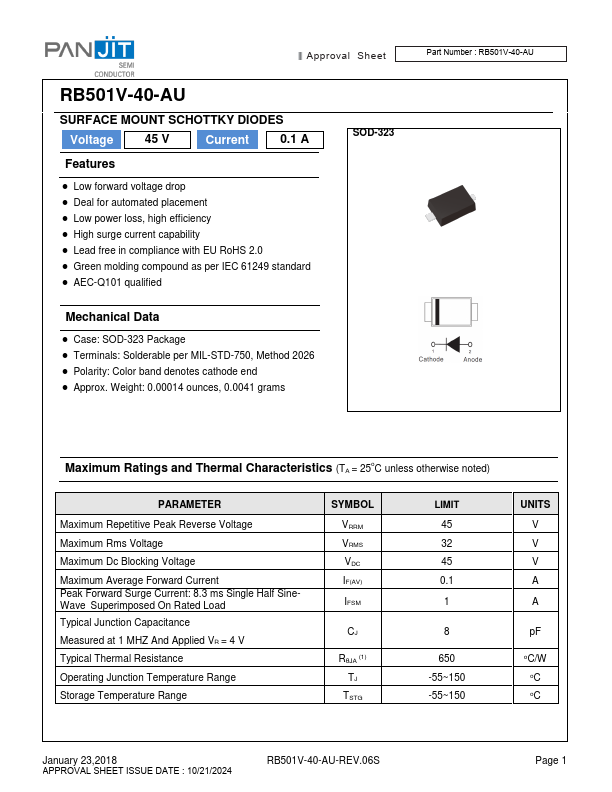

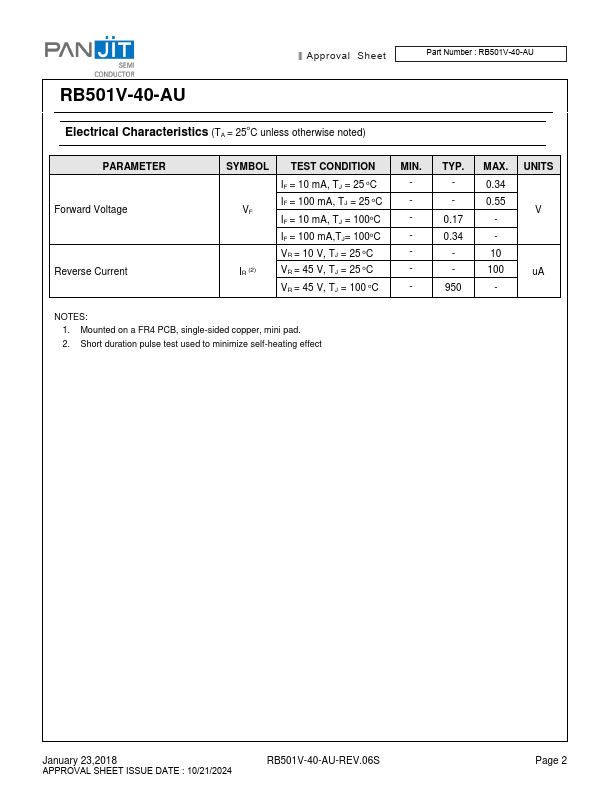

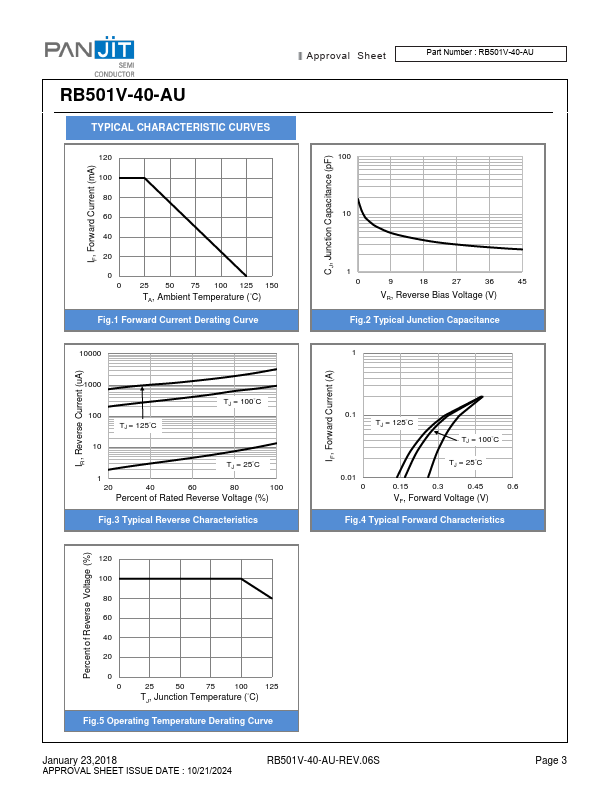

RB501V-40-AU SURFACE MOUNT SCHOTTKY DIODES VOLTAGE 45 Volt CURRENT 100 mA FEATURES • Extremely Fast Switching Speed • Very Low VF : 0.32V (Typ) at IF = 10mA • Surface mount package ideally suited for autmatic insertion • Lead free in compliance with EU RoHS 2011/65/EU directive • Green molding compound as per IEC61249 Std. . (Halogen Free) • Acqire quality system certificate : TS16949 • AEC-Q101 qualified MECHANICAL DATA • Case : SOD-323, Plastic • Terminals : Solderable per MIL-STD-750, Method 2026 • Polarity : Color band denotes cathode end • Appox Weight : 0.0001 ounces, 0.0041 gram • Marking : 501 0.054(1.35) 0.045(1.15) 0.078(1.95) 0.068(1.75) 0.014(0.35) 0.009(0.25) 0.036(0.90) 0.027(0.70) 0.107(2.7) 0.090(2.3) 0.006(0.15) 0.002(0.05) 0.012(0.30)MIN.
