RB520S30

Manufacturer: PanJit Semiconductor

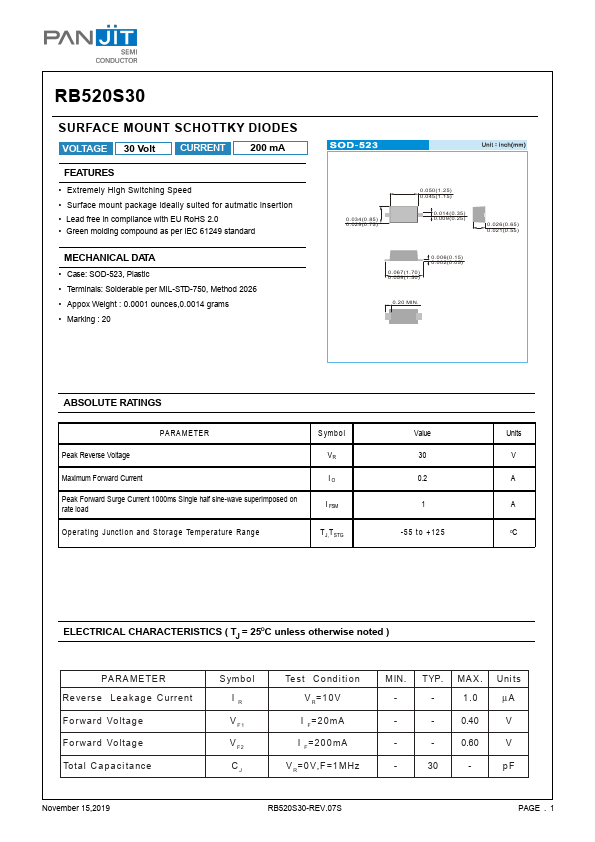

RB520S30 datasheet preview

Datasheet Details

Part number	RB520S30
Datasheet	RB520S30_PanJitInternational.pdf
File Size	482.55 KB
Manufacturer	PanJit Semiconductor
Description	SURFACE MOUNT SCHOTTKY DIODE

RB520S30 Overview

RB520S30 SURFACE MOUNT SCHOTTKY DIODES VOLTAGE 30 Volt CURRENT 200.

RB520S30 Key Features

Extremely High Switching Speed
Surface mount package ideally suited for autmatic insertion
Lead free in pliance with EU RoHS 2.0
Green molding pound as per IEC 61249 standard
Case: SOD-523, Plastic
Terminals: Solderable per MIL-STD-750, Method 2026
Appox Weight : 0.0001 ounces,0.0014 grams
Marking : 20
55 to +125
MAX. 1.0
