RB520S30 - 200mA low VF MEGA Schottky barrier rectifier

General Description

Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a SOD523 (SC-79) ultra small and flat lead Surface-Mounted Device (SMD) plastic package.

2.

Key Features

  • Average forward current: IF(AV) ≤ 0.2 A.
  • Reverse voltage: VR ≤ 30 V.
  • Low reverse current: IR ≤ 1 uA.
  • AEC-Q101 qualified.
  • Ultra small and flat lead SMD plastic package 3.

📥 Download Datasheet

Datasheet Details

Part number RB520S30
Manufacturer Nexperia
File Size 240.05 KB
Description 200mA low VF MEGA Schottky barrier rectifier
Datasheet download datasheet RB520S30 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
RB520S30 Schottky Barrier Diode WillSEMI
RB520S30 Schottky Barrier Diodes Fairchild Semiconductor
RB520S30 Schottky barrier rectifier NXP
RB520S30 SURFACE MOUNT SCHOTTKY DIODE Pan Jit International
RB520S30 SCHOTTKY BARRIER DIODE UTC

Other Datasheets by Nexperia

Part Number Description
RB520CS3002L VF MEGA Schottky barrier rectifier
RB520CS30L MEGA Schottky barrier rectifier
RB521CS30L MEGA Schottky barrier rectifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

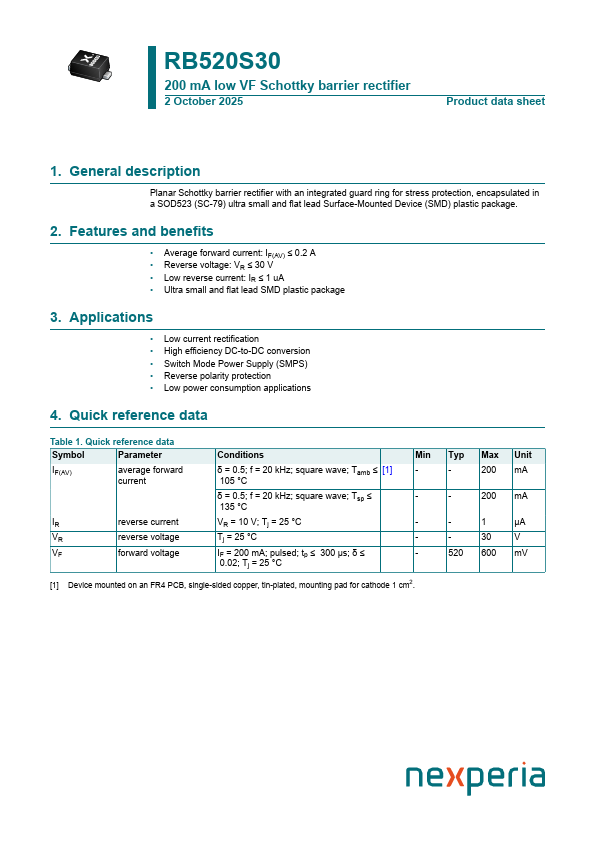

RB520S30 200 mA low VF MEGA Schottky barrier rectifier 7 April 2021 Product data sheet 1. General description Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a SOD523 (SC-79) ultra small and flat lead Surface-Mounted Device (SMD) plastic package. 2. Features and benefits • Average forward current: IF(AV) ≤ 0.2 A • Reverse voltage: VR ≤ 30 V • Low reverse current: IR ≤ 1 uA • AEC-Q101 qualified • Ultra small and flat lead SMD plastic package 3. Applications • Low current rectification • High efficiency DC-to-DC conversion • Switch Mode Power Supply (SMPS) • Reverse polarity protection • Low power consumption applications 4. Quick reference data Table 1.
