Datasheet Details
| Part number | MN3210 |
|---|---|
| Manufacturer | Panasonic |
| File Size | 214.81 KB |
| Description | DUAL 512-STAGE LOW VOLTAGE OPERATION LOW NOISE BBD |
| Datasheet |

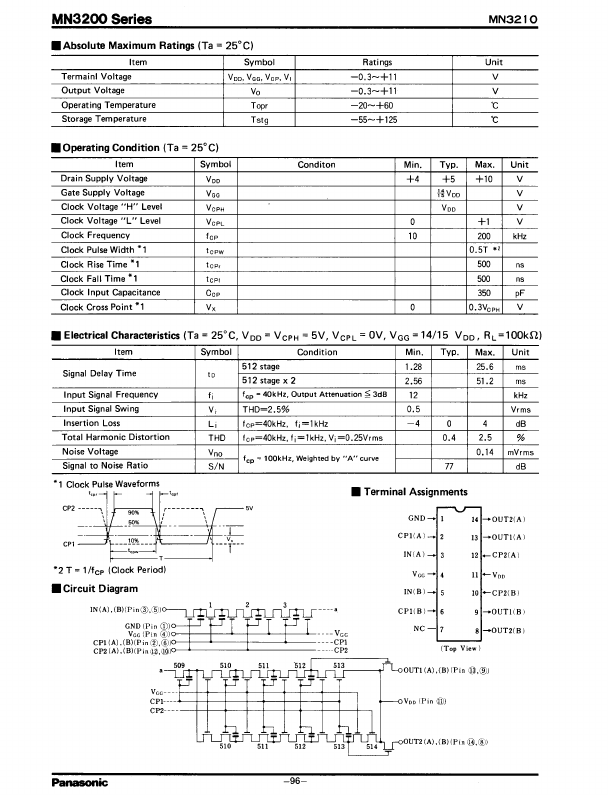

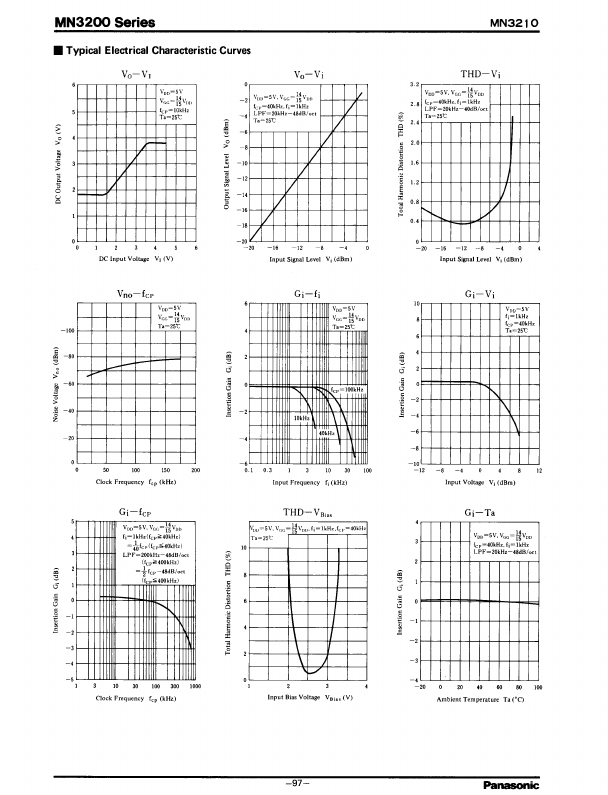

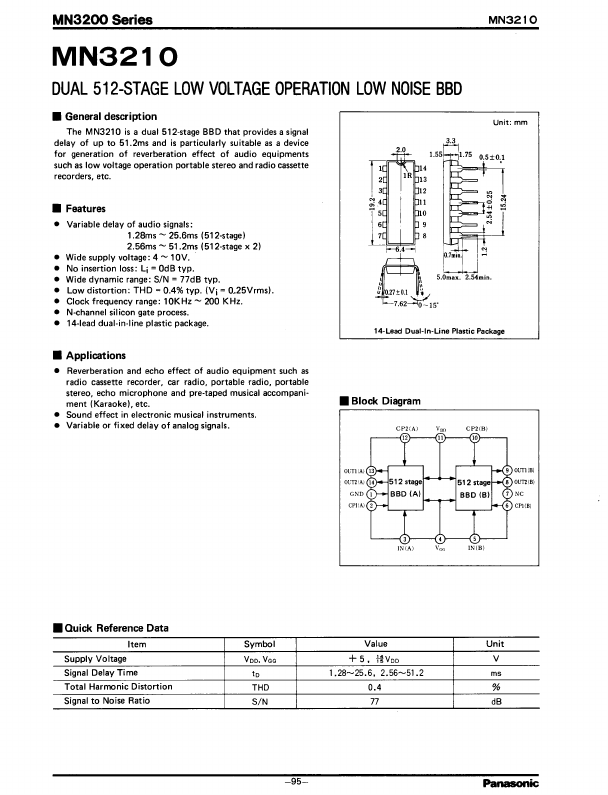

 MN3210 Datasheet
|
|
|
| Part number | MN3210 |
|---|---|
| Manufacturer | Panasonic |
| File Size | 214.81 KB |
| Description | DUAL 512-STAGE LOW VOLTAGE OPERATION LOW NOISE BBD |
| Datasheet |
MN3210 Datasheet
|
|
|
|
| Part Number | Description | Manufacturer |
|---|---|---|
| MN3000 | (MN3000 Series) High Accuracy 8-Bit D/A Converters | Micro Networks |
| MN3001 | (MN3000 Series) High Accuracy 8-Bit D/A Converters | Micro Networks |
| MN3001 | (MN3001 / MN3002) Digital Monolithic Integrated Circuits | Panasonic |
| MN3002 | (MN3000 Series) High Accuracy 8-Bit D/A Converters | Micro Networks |
| MN3002 | (MN3001 / MN3002) Digital Monolithic Integrated Circuits | Panasonic |
| Part Number | Description |
|---|---|
| MN3214 | 1024-STAGE LOW VOLTAGE OPERATION BBD |
| MN3207 | 1024-Stage Low Voltage Operation / Low Noise BBD for Analog Signal Delays |
| MN3208 | 2048-Stage Low Voltage Operation Low Noise BBD |
| MN3209 | 256 STAGE LOW VOLTAGE OPERATION LOW NOISE BBD |
| MN3000 | (MN3000 Series) 512-STAGE LOW NOISE BBD |
The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.
