MN3214 - 1024-STAGE LOW VOLTAGE OPERATION BBD

Product Overview

Panasonic Semiconductor

Part number	MN3214
Manufacturer	Panasonic Semiconductor
File Size	229.71 KB
Description	1024-STAGE LOW VOLTAGE OPERATION BBD
Datasheet	MN3214 Datasheet

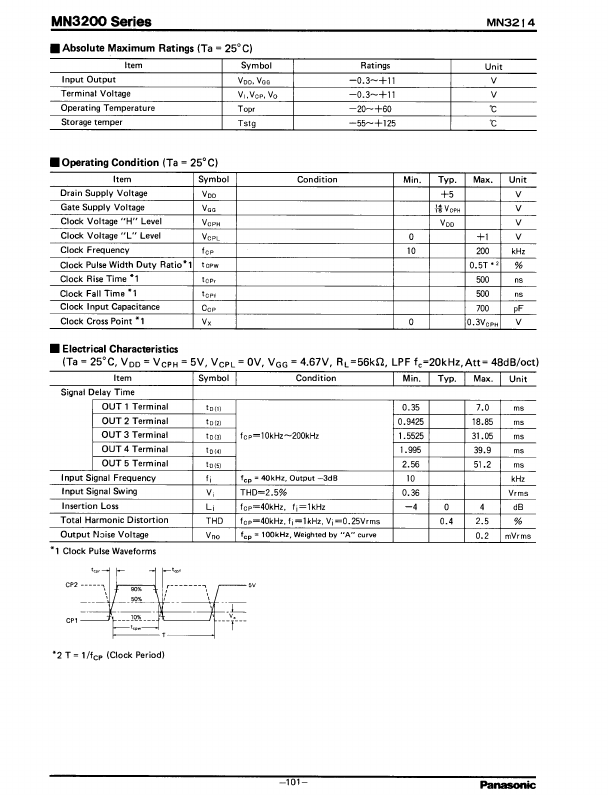

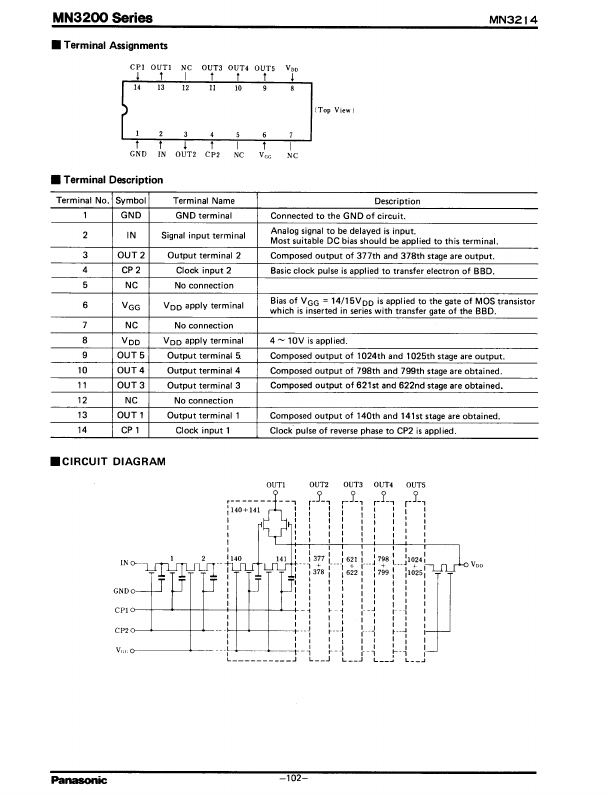

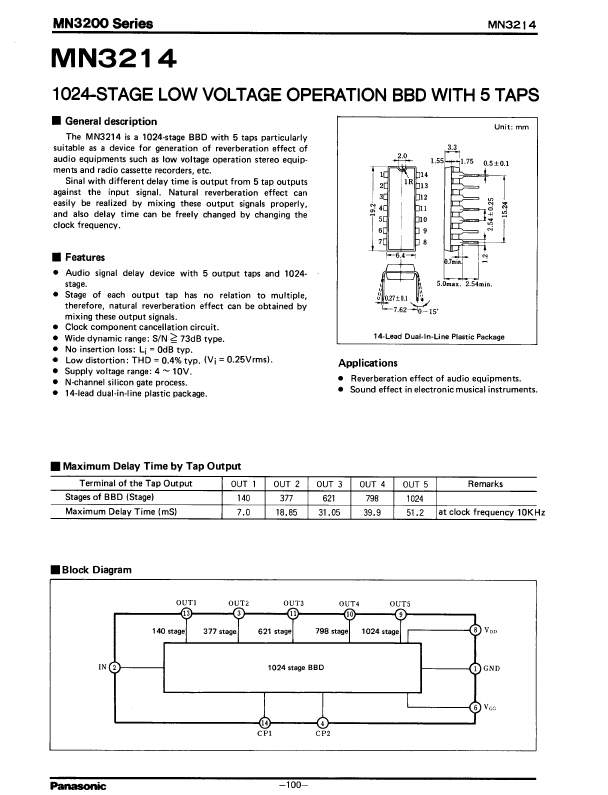

Additional preview pages of the MN3214 datasheet.
