A7503C - Amorphous Solar Cells

Datasheet Summary

Features

  • Items 3.1 Open Circuit Voltage :Voc（） 3.2 Short Circuit Current :Isc（） 3.3 Operating Voltage ＆ Operating Current :Vope-Iope () Typical Typical Specifications (.

📥 Download Datasheet

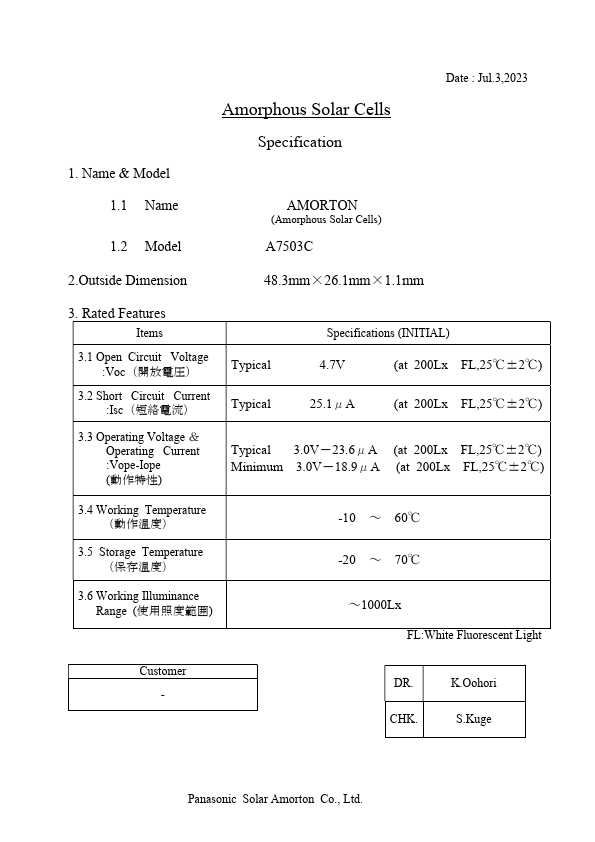

Datasheet preview – A7503C

Datasheet Details

Part number A7503C
Manufacturer Panasonic
File Size 364.00 KB
Description Amorphous Solar Cells
Datasheet download datasheet A7503C Datasheet
Additional preview pages of the A7503C datasheet.

📁 Similar Datasheet

  • A750 - Single-Ended Conductive Polymer Aluminum Solid Electrolytic Capacitors (KEMET)
  • A7501 - 300KHz PFM STEP-UP DC-DC CONVERTER (AiT Semiconductor)
  • A7506 - DC-DC CONVERTER BOOST (AiT Semiconductor)
  • A7508 - 1.3MHz MICROPOWER SYNCHRONOUS DC-DC CONVERTER BOOST (AiT Semiconductor)
  • A75 - Cascadable Amplifier (MACOM)
  • A75-2 - Cascadable Amplifier (MACOM)
  • A75-3 - Cascadable Amplifier (MACOM)
  • A7510 - 180KHz DC-DC CONVERTER (Advanced Innovation Technology)
  • A7512 - STEP DOWN DC-DC CONVERTER (AiT Semiconductor)
  • A7512A - STEP-DOWN DC-DC CONVERTER (AiT Semiconductor)
Other Datasheets by Panasonic

    Full PDF Text Transcription

    Click to expand full text

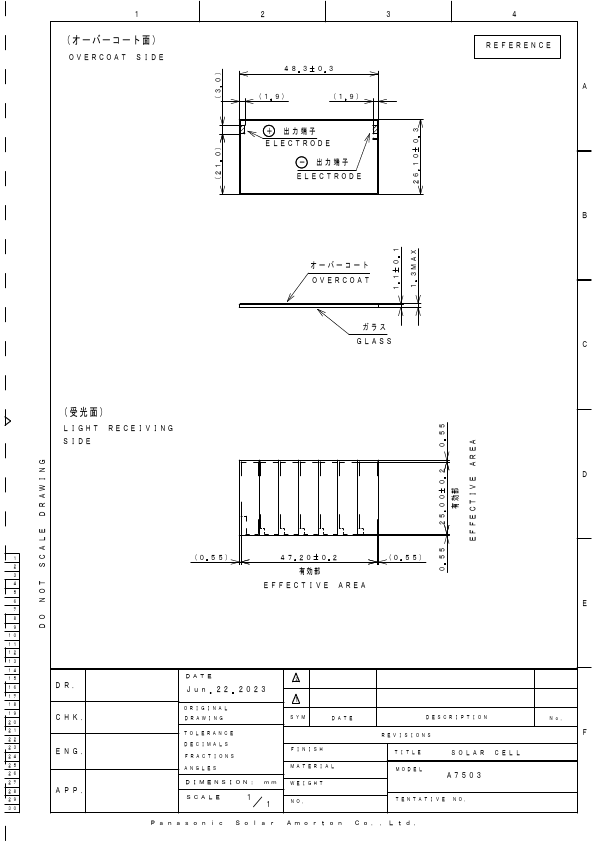

    Amorphous Solar Cells Date : Jul.3,2023 1. Name & Model Specification 1.1 Name 1.2 Model AMORTON (Amorphous Solar Cells) A7503C 2.Outside Dimension 48.3mm×26.1mm×1.1mm 3. Rated Features Items 3.1 Open Circuit Voltage :Voc（） 3.2 Short Circuit Current :Isc（） 3.3 Operating Voltage ＆ Operating Current :Vope-Iope () Typical Typical Specifications (INITIAL) 4.7V (at 200Lx FL,25℃±2℃) 25.1μA (at 200Lx FL,25℃±2℃) Typical 3.0V－23.6μA (at 200Lx FL,25℃±2℃) Minimum 3.0V－18.9μA (at 200Lx FL,25℃±2℃) 3.4 Working Temperature （） -10 ～ 60℃ 3.5 Storage Temperature （） -20 ～ 70℃ 3.6 Working Illuminance Range () ～1000Lx FL:White Fluorescent Light Customer - DR. CHK. K.Oohori S.Kuge Panasonic Solar Amorton Co., Ltd.
