A-5001E

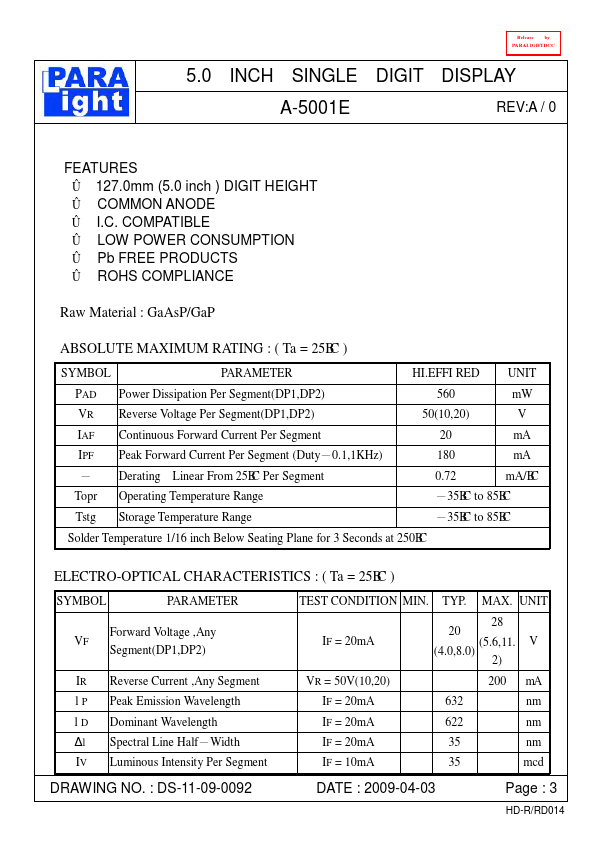

FEATURES
Û 127.0mm (5.0 inch ) DIGIT HEIGHT Û MON ANODE Û I.C. PATIBLE Û LOW POWER CONSUMPTION Û Pb FREE PRODUCTS Û ROHS PLIANCE
Raw Material : Ga As P/Ga P
ABSOLUTE MAXIMUM RATING : ( Ta = 25BC )
SYMBOL
PARAMETER
HI.EFFI RED UNIT
PAD Power Dissipation Per Segment(DP1,DP2)
560 m W
VR Reverse Voltage Per Segment(DP1,DP2)
50(10,20)
IAF Continuous Forward Current Per Segment
20 m A
IPF Peak Forward Current Per Segment (Duty－0.1,1KHz)
180 m A
－ Derating Linear From 25BC Per Segment
0.72 m A/BC
Topr Operating Temperature Range
－35BC to 85BC
Tstg Storage Temperature Range
－35BC to 85BC
Solder Temperature 1/16 inch Below Seating Plane for 3 Seconds at 250BC
ELECTRO-OPTICAL CHARACTERISTICS : ( Ta = 25BC )
SYMBOL
PARAMETER
Forward Voltage ,Any VF
Segment(DP1,DP2)
IR Reverse Current ,Any Segment l P Peak Emission Wavelength l D Dominant Wavelength Δl Spectral Line Half－Width IV Luminous Intensity Per Segment
TEST CONDITION MIN. TYP. MAX. UNIT
IF = 20m A
28 20
(5.6,11. V...
