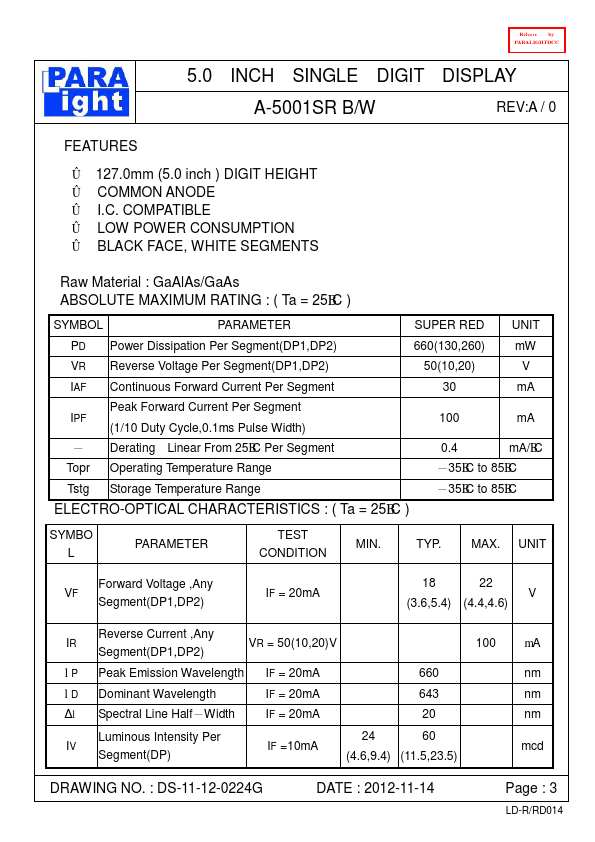

A-5001SRB-W
FEATURES
Û 127.0mm (5.0 inch ) DIGIT HEIGHT Û MON ANODE Û I.C. PATIBLE Û LOW POWER CONSUMPTION Û BLACK FACE, WHITE SEGMENTS
Raw Material : Ga Al As/Ga As ABSOLUTE MAXIMUM RATING : ( Ta = 25BC )
SYMBOL
PARAMETER
SUPER RED UNIT
PD Power Dissipation Per Segment(DP1,DP2)
660(130,260) m W
VR Reverse Voltage Per Segment(DP1,DP2)
50(10,20)
IAF Continuous Forward Current Per Segment
30 m A
Peak Forward Current Per Segment IPF
(1/10 Duty Cycle,0.1ms Pulse Width)
100 m A
－ Derating Linear From 25BC Per Segment
0.4 m A/BC
Topr Operating Temperature Range
－35BC to 85BC
Tstg Storage Temperature Range
－35BC to 85BC
ELECTRO-OPTICAL CHARACTERISTICS : ( Ta = 25BC )
SYMBO L
PARAMETER
TEST CONDITION
MIN.
TYP. MAX. UNIT
Forward Voltage ,Any VF
Segment(DP1,DP2)
IF = 20m A
(3.6,5.4) (4.4,4.6)
Reverse Current ,Any IR
Segment(DP1,DP2)
VR = 50(10,20)V
100 m A l P Peak Emission Wavelength IF = 20m A
660 nm l D Dominant Wavelength Δl Spectral Line Half－Width
IF = 20m A IF...
