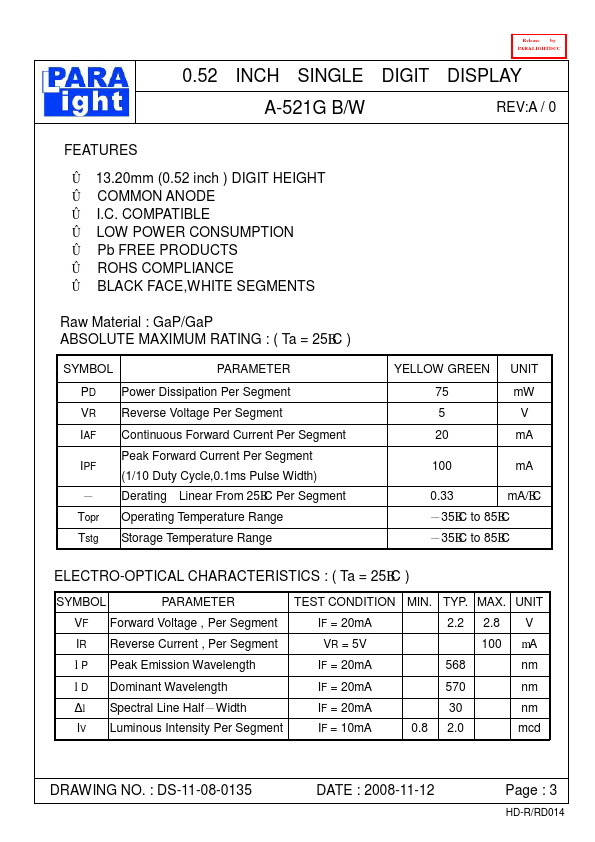

A-521GB-W
FEATURES
Û 13.20mm (0.52 inch ) DIGIT HEIGHT Û MON ANODE Û I.C. PATIBLE Û LOW POWER CONSUMPTION Û Pb FREE PRODUCTS Û ROHS PLIANCE Û BLACK FACE,WHITE SEGMENTS
Raw Material : Ga P/Ga P ABSOLUTE MAXIMUM RATING : ( Ta = 25BC )
SYMBOL
PARAMETER
PD Power Dissipation Per Segment VR Reverse Voltage Per Segment IAF Continuous Forward Current Per Segment
Peak Forward Current Per Segment IPF
(1/10 Duty Cycle,0.1ms Pulse Width) － Derating Linear From 25BC Per Segment Topr Operating Temperature Range Tstg Storage Temperature Range
YELLOW GREEN 75 5 20
UNIT m W
V m A
100 m A
0.33 m A/BC
－35BC to 85BC
－35BC to 85BC
ELECTRO-OPTICAL CHARACTERISTICS : ( Ta = 25BC )
SYMBOL
PARAMETER
TEST CONDITION MIN. TYP. MAX. UNIT
VF Forward Voltage , Per Segment
IF = 20m A
2.2 2.8 V
IR Reverse Current , Per Segment
VR = 5V
100 m A l P Peak Emission Wavelength
IF = 20m A
568 nm l D Dominant Wavelength
IF = 20m A
570 nm
Δl Spectral Line Half－Width
IF = 20m A
30 nm
IV Luminous Intensity Per...
