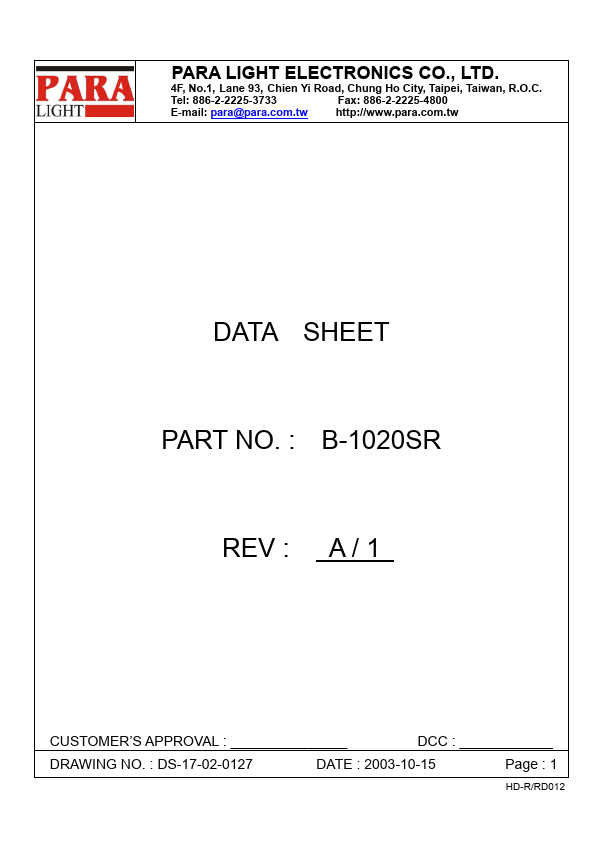

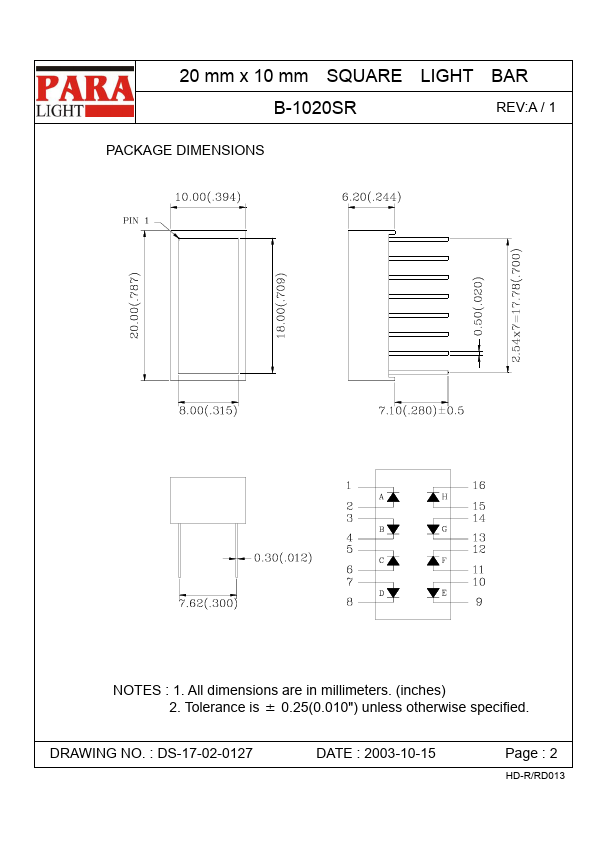

B-1020SR

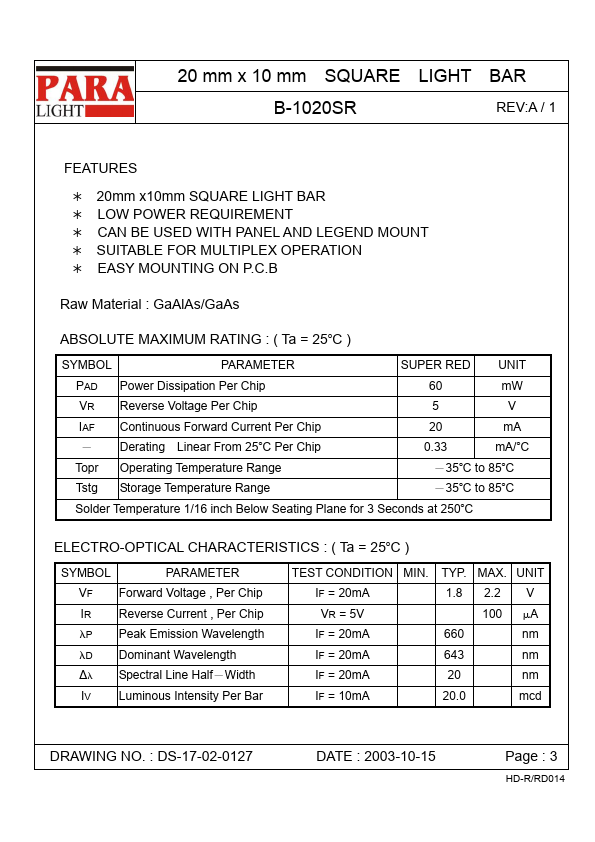

FEATURES
20mm x10mm SQUARE LIGHT BAR LOW POWER REQUIREMENT CAN BE USED WITH PANEL AND LEGEND MOUNT SUITABLE FOR MULTIPLEX OPERATION EASY MOUNTING ON P.C.B
Raw Material : Ga Al As/Ga As
ABSOLUTE MAXIMUM RATING : ( Ta = 25°C )
SYMBOL
PARAMETER
SUPER RED UNIT
PAD Power Dissipation Per Chip
60 m W
VR Reverse Voltage Per Chip
IAF Continuous Forward Current Per Chip
20 m A
－ Derating Linear From 25°C Per Chip
0.33 m A/°C
Topr Operating Temperature Range
－35°C to 85°C
Tstg Storage Temperature Range
－35°C to 85°C
Solder Temperature 1/16 inch Below Seating Plane for 3 Seconds at 250°C
ELECTRO-OPTICAL CHARACTERISTICS : ( Ta = 25°C )
SYMBOL
PARAMETER
VF Forward Voltage , Per Chip
IR Reverse Current , Per Chip
λP Peak Emission Wavelength
λD Dominant Wavelength
∆λ Spectral Line Half－Width
IV Luminous Intensity Per Bar
TEST CONDITION MIN. TYP. MAX. UNIT
IF = 20m A
1.8 2.2 V
VR = 5V
100 µA
IF = 20m A
660 nm
IF = 20m A
643 nm
IF = 20m A
20...
